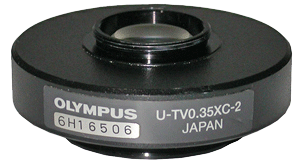

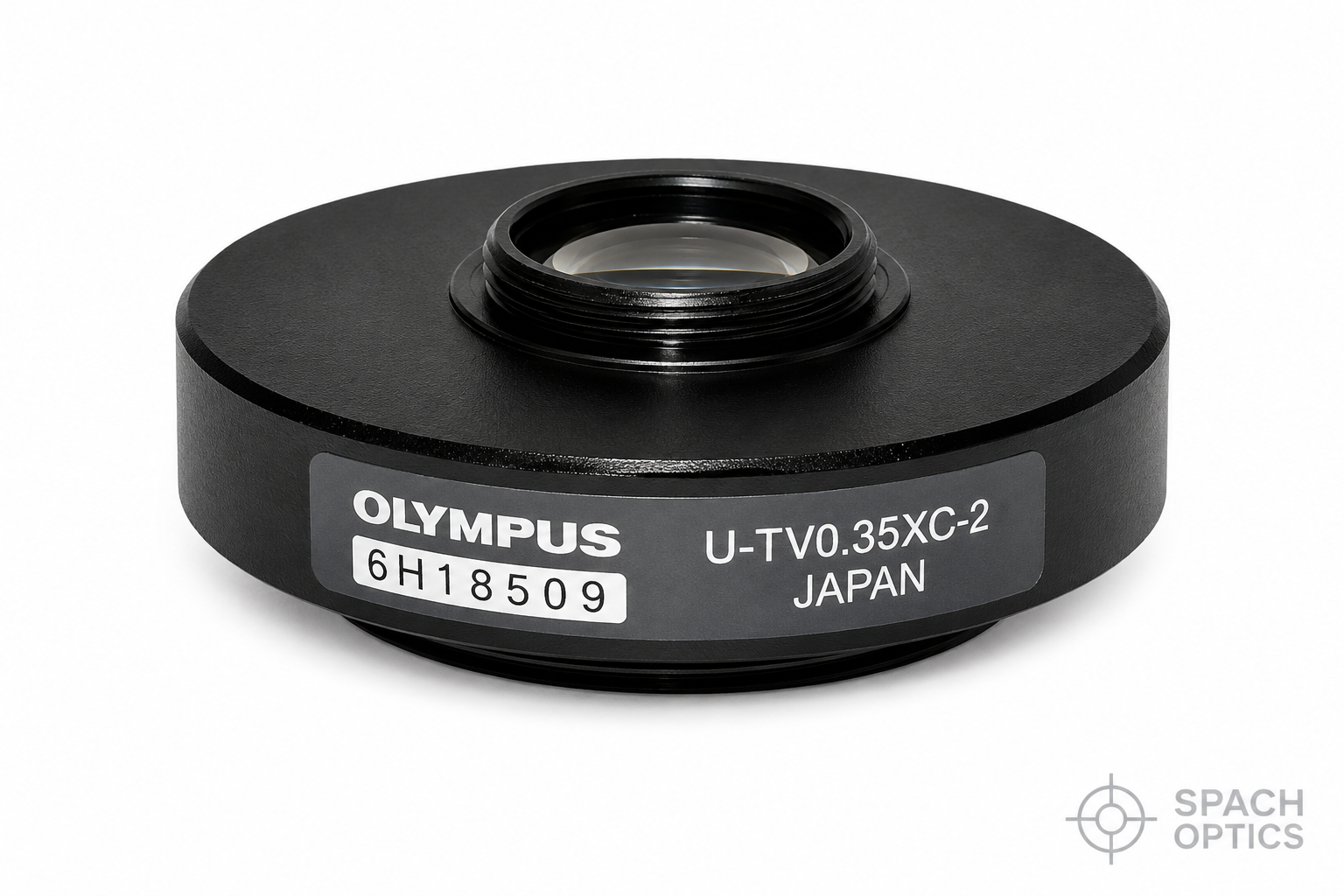

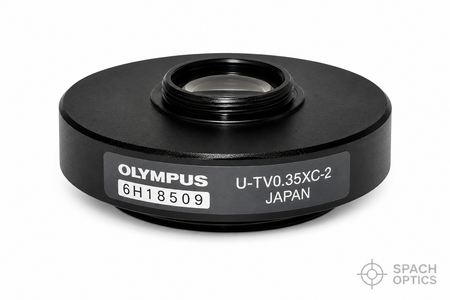

Olympus 0.35x C-Mount Camera Adapter

The Olympus U-TV0.35XC is the highest-reduction adapter in the standard Olympus C-mount lineup, providing a 0.35x reduction factor that delivers the largest possible field of view on 1/3" format cameras — a sensor size common in many compact USB and GigE machine vision and scientific cameras. At 0.35x, this adapter captures a significantly wider specimen area per frame compared to the 0.5x or 0.63x variants, making it the preferred choice for screening, low-magnification overview imaging, and applications where maximizing the captured field is the primary objective. The built-in parfocality adjustment mechanism allows the camera focal plane to be precisely aligned with the eyepiece focal plane, enabling simultaneous visual and digital observation without refocusing. As a genuine Olympus OEM part manufactured in Japan, the U-TV0.35XC maintains the optical coatings and mechanical tolerances required for high-fidelity image transmission.
