NIST Traceable Stage Micrometer 1mm/100 Divisions - KR851

In stock

SKU: KR-851-NIST

$575.00

KEY FEATURES

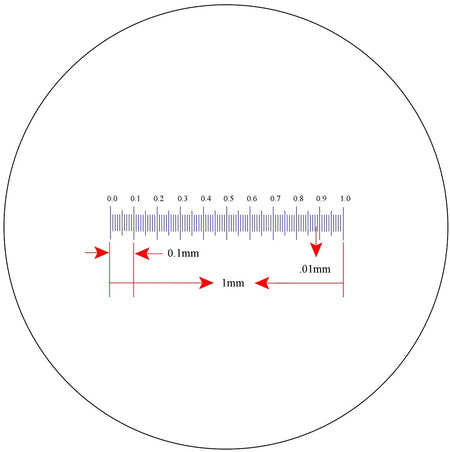

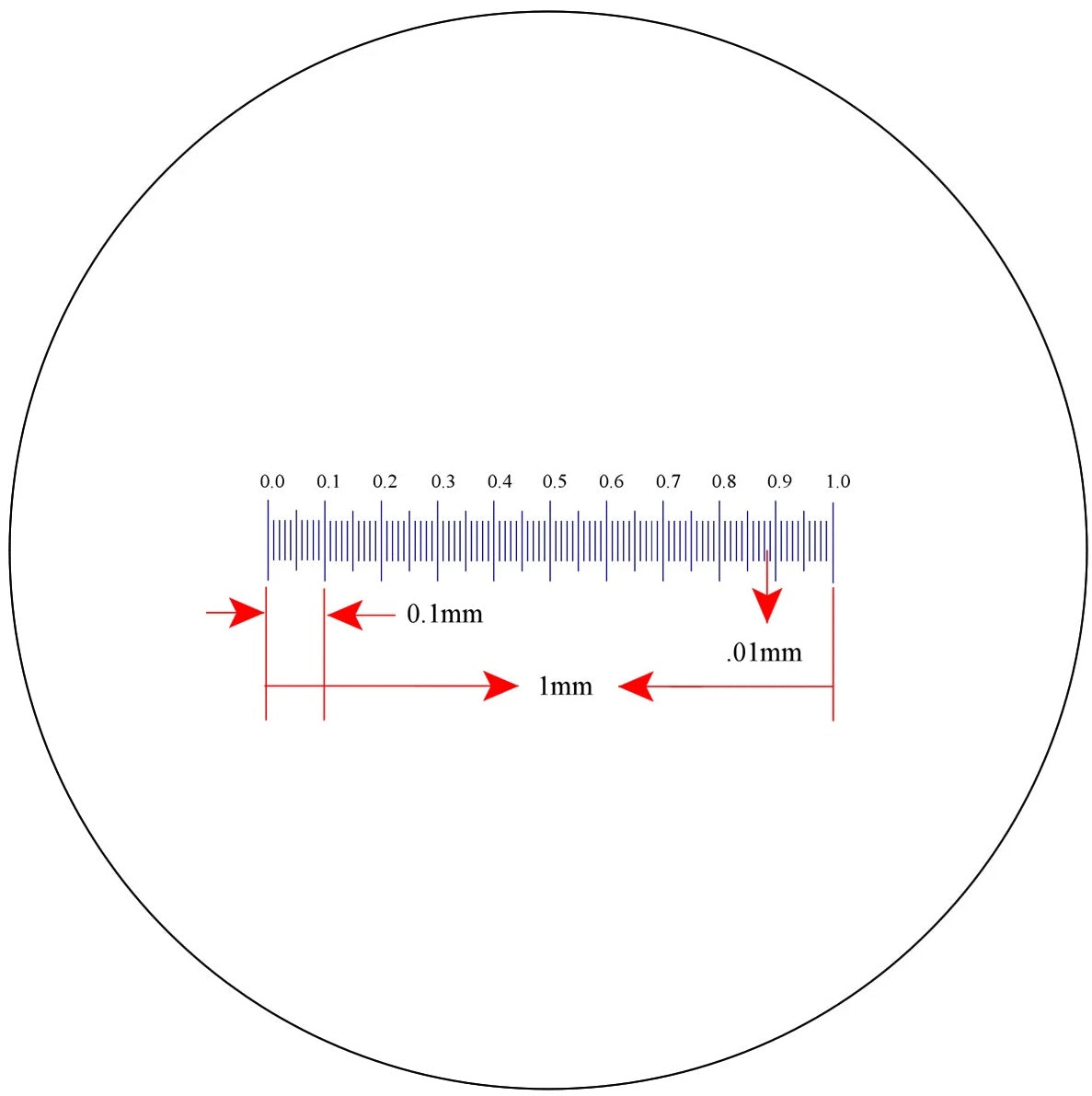

  • 1mm scale, 100 divisions — 0.01mm per division, numbered 0.0 through 1.0 for precise microscope calibration
  • NIST traceable calibration — includes 10-point calibration certificate for metrological traceability
  • Chrome deposition lines — high-contrast, durable ruling on precision optical glass
  • ±0.0002" / 0.005mm overall pattern tolerance — exceptional accuracy for demanding calibration requirements
  • 20/10 surface quality — optical-grade glass with 2 waves or better flatness
  • Made in USA — precision manufactured to exacting metrology standards
  • University purchase orders accepted
Request a Quote
Backed by Spach Optics Warranty

Secure Packaging & Reliable Delivery

People-Powered Support

Product Overview

The KR-851 is a NIST traceable stage micrometer featuring a 1mm scale divided into 100 equal divisions of 0.01mm each, numbered 0.0 through 1.0. It is used to calibrate the field of view and pixel size of microscope imaging systems — an essential step for any quantitative measurement, image analysis, or metrology workflow. The chrome deposition ruling provides high-contrast, durable division lines on precision optical glass with a 20/10 surface quality rating and flatness of 2 waves or better. Centering is held within 0.0005" and overall pattern tolerance is ±0.0002" (0.005mm) — meeting the requirements of the most demanding laboratory and industrial calibration applications. Includes 10 points of calibration (e.g., 0 to 0.1mm, 0 to 0.2mm, through 0 to 1.0mm); additional calibration points are available at extra cost. Mounted on a standard 1" × 3" microscope slide format, 0.110" thick. Made in the USA.

Technical Specifications

Part Number KR-851-NIST
Scale Length 1mm
Divisions 100 (0.01mm per division)
Numbering 0.0 – 1.0
Calibration Points 10 (NIST traceable)
Line Type Chrome Deposition
Overall Pattern Tolerance ±0.0002" / 0.005mm
Centering Within 0.0005"
Surface Quality 20/10
Flatness 2 waves or better
Glass Size 1" × 3"
Glass Thickness 0.110"
Parallelism 2 min.
Country of Origin USA

Microscope Compatibility

Typical Applications

Microscope objective and eyepiece magnification calibration
Camera pixel size and image scale calibration for image analysis software
Metrology and dimensional measurement verification
Quality control and inspection system calibration
Research and clinical laboratory microscopy calibration
