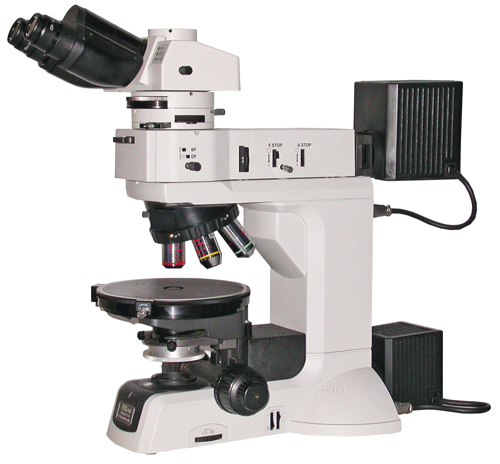

Nikon LV100 POL Reflected and Transmitted Light Microscope
Nikon LV100 POL Reflected and Transmitted Light Microscope

Nikon LV100 POL Reflected and Transmitted Light Microscope

Out of stock

SKU: LV100-POL

$11,900.00
$11,900.00 $33,500.00 save $21,600.00
Nikon LV100 POL Reflected & Transmitted Polarized Light Microscope — a fully configured, research-grade upright polarized light microscope with both reflected and transmitted illumination, complete with four LU Plan POL objectives, Bertrand unit, rotatable ball bearing stage, and trinocular head.

KEY FEATURES

  • Reflected & transmitted polarized light — dual illumination modes
  • Large 360° rotatable ball bearing stage for precise specimen orientation
  • 5-position centerable POL nosepiece
  • 4 LU Plan POL objectives included: 5X (WD 23.5mm), 10X (WD 17.3mm), 20X (WD 4.5mm), 50X (WD 1.0mm)
  • Bertrand unit with ¼ wave & full wave plate slider for conoscopic observation
  • Analyzer & rotatable reflected light polarizer
  • Condenser with built-in rotatable polarizer & click stops
  • 3-position trinocular head with 10X adjustable eyepieces
  • Two 12V 100W quartz halogen lamphouses (reflected & transmitted)
  • Camera-ready — compatible camera available upon request
  • Condition: Reconditioned — excellent performance
  • University purchase orders accepted
Request a Quote
Backed by Spach Optics Warranty

Secure Packaging & Reliable Delivery

People-Powered Support

Product Overview

The Nikon LV100 POL is a research-grade upright polarized light microscope renowned for producing brighter, clearer, and higher-contrast images than competing platforms. This fully configured system supports both diascopic (transmitted) and episcopic (reflected) polarized light observation — making it equally suited for geological thin section analysis, semiconductor and materials inspection, and advanced mineralogy. The large 360° rotatable ball bearing stage enables precise specimen rotation for extinction angle measurements and conoscopic observations, while the Bertrand unit with ¼ and full wave plate slider provides complete accessory plate capability. Four strain-free LU Plan POL objectives (5X, 10X, 20X, 50X) cover the full range of magnification needs, and the 3-position trinocular head is camera-ready — contact us for a compatible camera recommendation.

Technical Specifications

Model LV100 POL
Illumination Reflected & Transmitted Polarized Light
Stage Large 360° Rotatable Ball Bearing
Nosepiece 5-Position Centerable POL
Objectives Included LU Plan POL 5X, 10X, 20X, 50X
Bertrand Unit Yes — with ¼ wave & full wave plate slider
Analyzer Yes
Polarizer (Reflected) Rotatable
Polarizer (Transmitted) Built-in rotatable with click stops
Head 3-Position Trinocular
Eyepieces 10X Adjustable
Lamphouses 2 × 12V 100W Quartz Halogen
SKU LV100-POL
Country of Origin Japan
Condition Reconditioned — Excellent Performance

Microscope Compatibility

Typical Applications

Geological thin section and mineral identification (orthoscopic & conoscopic)
Semiconductor wafer and materials inspection under reflected POL
Polymer, fiber, and crystal characterization
Pharmaceutical and chemical compound analysis
University and research laboratory use
