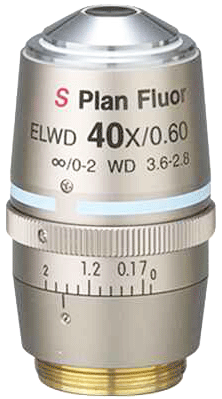

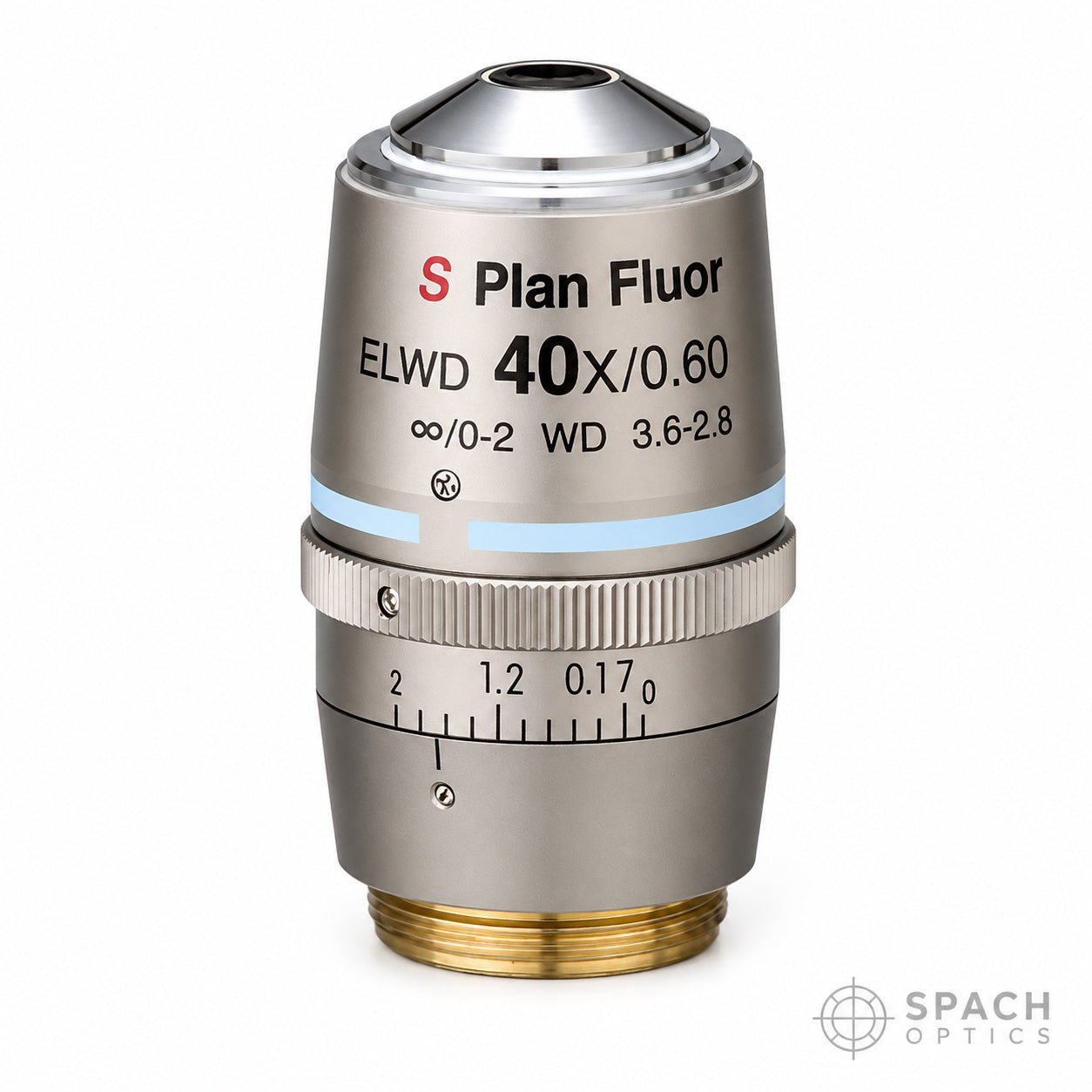

Nikon CFI S Plan Fluor 40X ELWD Objective

The Nikon S Plan Fluor ELWD 40× Objective is a precision microscope objective engineered for high-resolution imaging with extended working distance — ideal for samples that require extra clearance, such as thick slides, culture dishes, or mounted specimens. With 40× magnification and a numerical aperture (NA) of 0.60, this objective delivers crisp images with excellent contrast and resolution, making it suitable for a wide range of microscopy techniques including brightfield, fluorescence, DIC, and phase contrast.

Extra-long working distance (ELWD) optics like this one provide an extended focal space of approximately 3.0–3.5 mm, enabling imaging of thicker specimens and easier access for manipulators, probes, or perfusion systems — a valuable advantage for research, clinical, and industrial microscopy workflows.

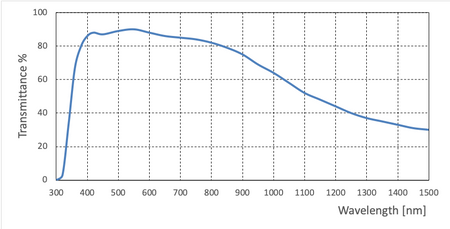

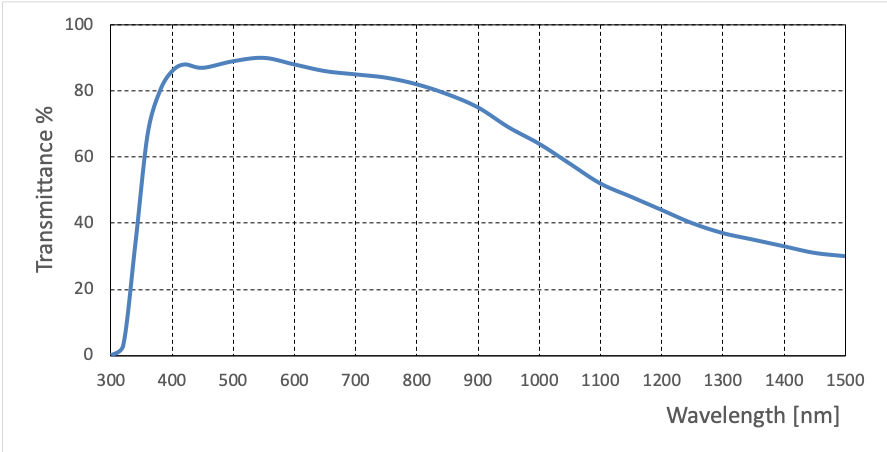

The Plan Fluor optical design combines flat-field correction with reduced chromatic and spherical aberrations to ensure sharp, uniform images from center to edge. With broad spectral transmission spanning the near-ultraviolet through the visible and into near-infrared, this objective supports multimodal imaging across diverse applications.

This objective uses a standard M25 threaded mount and is designed for infinity-corrected microscope systems, making it compatible with many upright microscopes common in life science, clinical, and material science laboratories.
