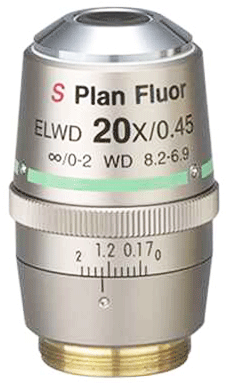

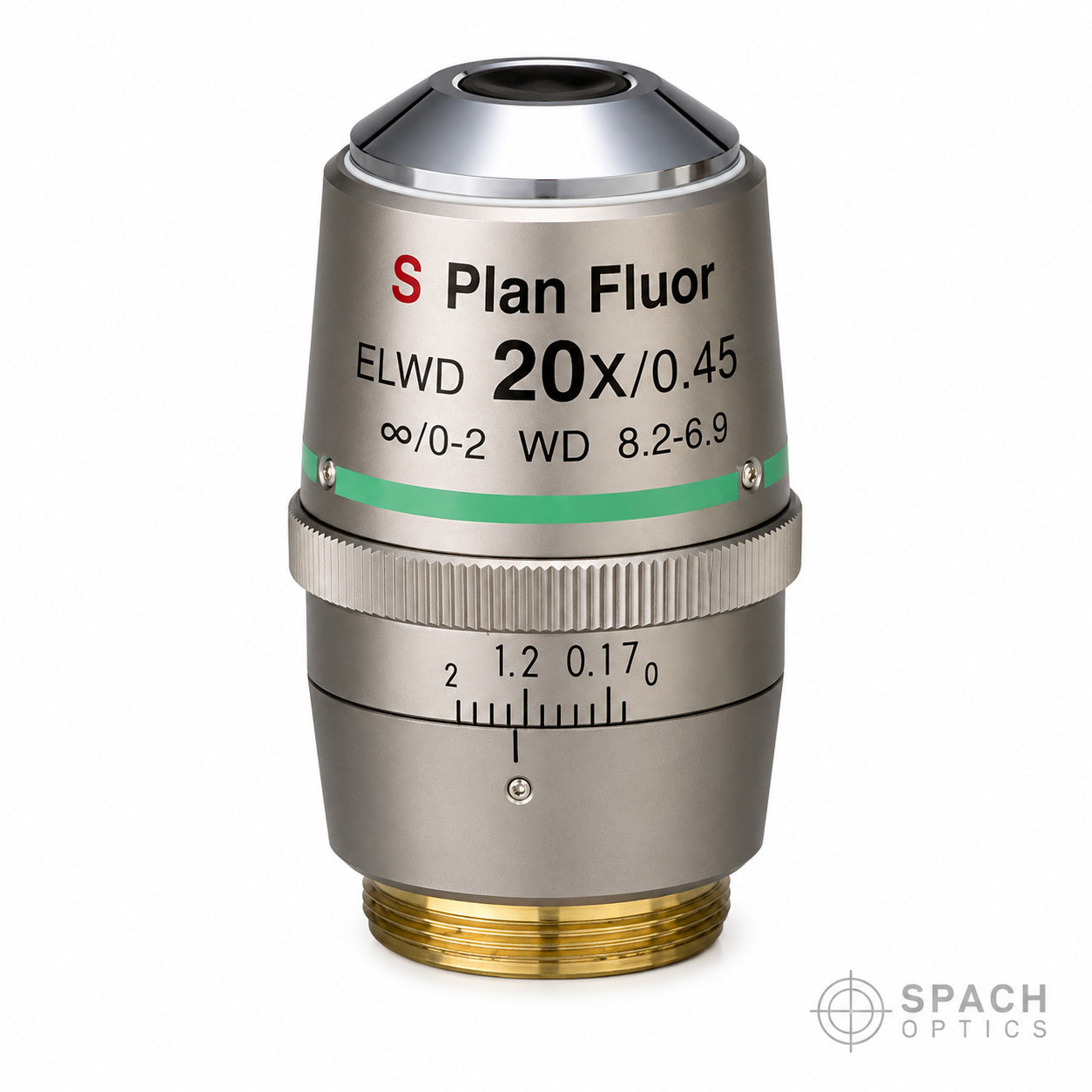

Nikon CFI S Plan Fluor 20X ELWD Objective

The Nikon S Plan Fluor ELWD 20× Objective is a precision microscope objective engineered for applications where extended working distance and broad spectral performance are essential. With 20× magnification and a numerical aperture (NA) of 0.45, this ELWD (Extra-Long Working Distance) lens delivers crisp, high-contrast imaging across a wide range of microscopy techniques.

Unlike standard objectives that sacrifice working distance for higher magnification, the ELWD design extends the focal space to approximately 6.9–8.2 mm, allowing room for thicker samples, culture vessels, or accessory probes without compromising image quality. This makes it ideal for brightfield, darkfield, differential interference contrast (DIC), phase contrast, and fluorescence microscopy across biological, clinical, and materials science workflows.

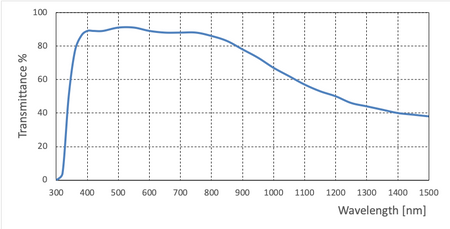

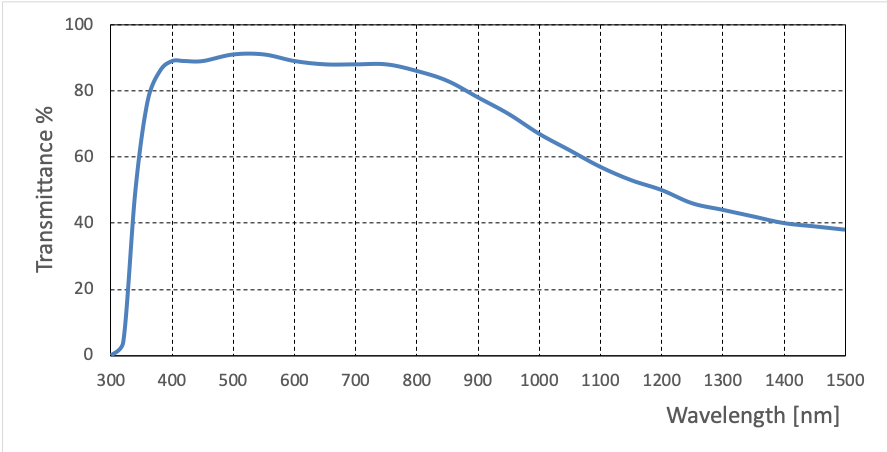

The Plan Fluor optical design combines flat-field correction with reduced chromatic and spherical aberrations, producing uniform sharpness and contrast from center to edge — a key advantage for documentation and quantitative assessment. With broad spectral transmission that spans from near-ultraviolet through the visible range into near-infrared, the S Plan Fluor ELWD series supports versatile imaging needs in both research and industrial laboratories.

This objective features a standard M25 threaded mount and is designed for use with infinity-corrected microscope systems — giving you flexibility and compatibility with many upright microscopes used in life science or inspection environments.
