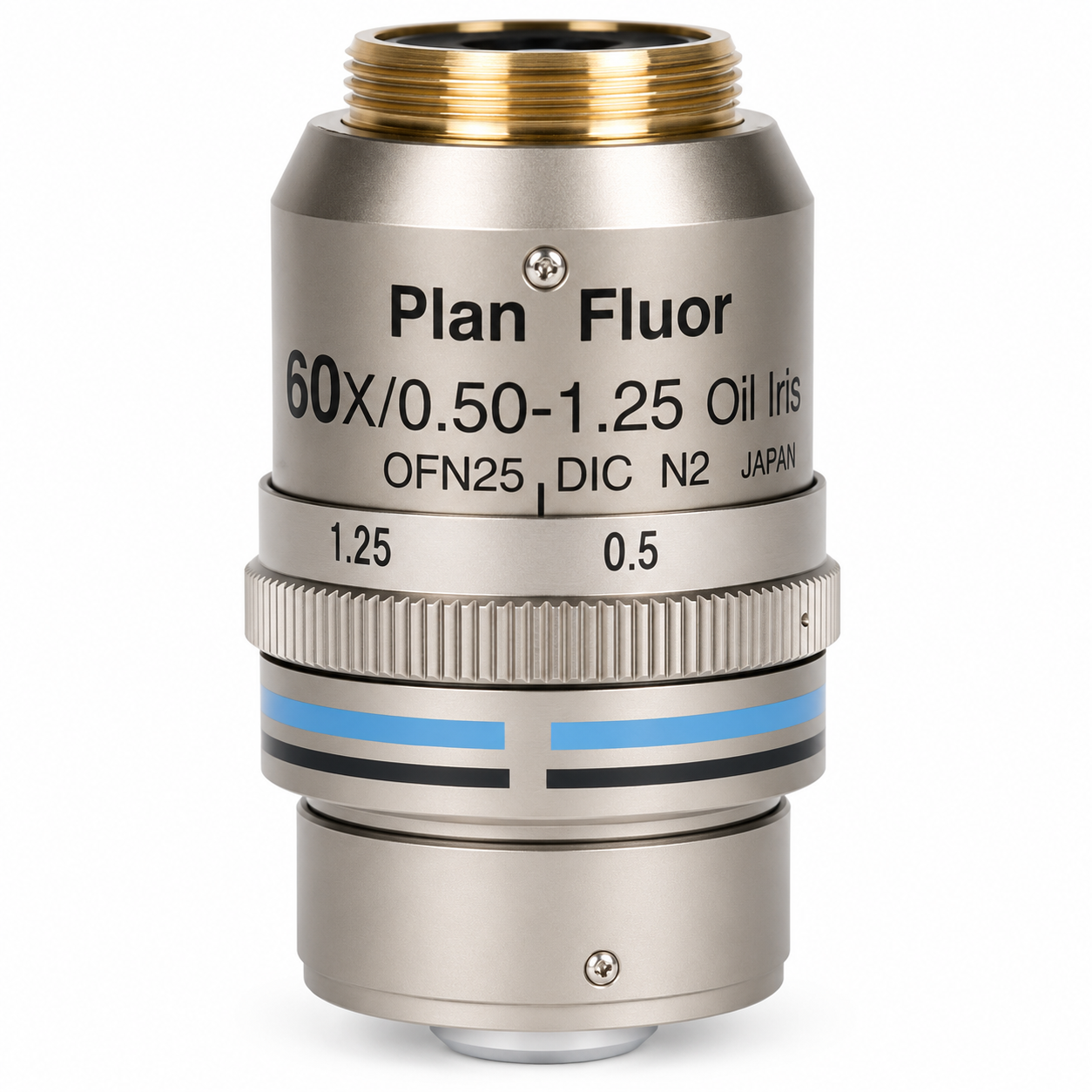

Nikon CFI Plan Fluor 60X Oil Immersion Objective with Iris
Regular price
$6,190.00
Nikon CFI Plan Fluor 60X Oil Objective with Iris — variable NA iris diaphragm for flexible high-magnification imaging across multiple modalities.
KEY FEATURES
- Variable NA Iris Diaphragm: Stepless NA adjustment — balance resolution, depth of field, and contrast without changing objectives
- 60x Magnification: Practical balance between field of view and resolving power — ideal where both field coverage and fine detail matter

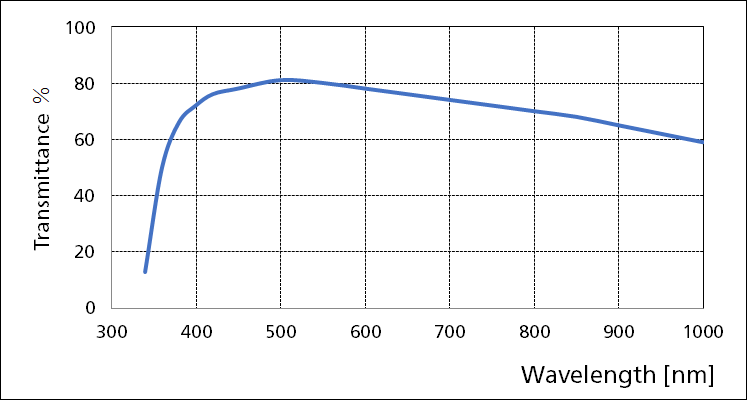

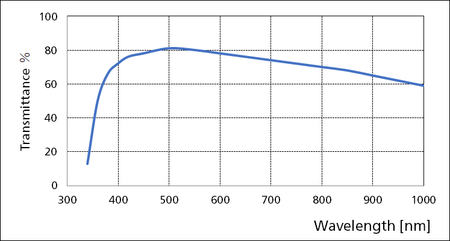

- Plan Fluor Optics: Flat-field fluorite correction with broad fluorescence transmission across UV and visible wavelengths
- Oil Immersion: High light collection and resolution for demanding fluorescence and brightfield imaging
- Multi-Modality: Suitable for brightfield, fluorescence, darkfield, phase contrast, and oblique illumination
Backed by Spach Optics Warranty
Secure Packaging & Reliable Delivery
People-Powered Support
Technical Specifications
| Magnification | 60x |
| Immersion Medium | Oil |
| Optical Correction | Plan Fluor (fluorite) |
| Iris Diaphragm | Yes (stepless NA adjustment) |
| Microscope Type | CFI infinity-corrected (upright and inverted) |
| Part Number | MRH02601 |
| Country of Origin | Japan |
| Condition | New |
Microscope Compatibility
| Nikon CFI infinity-corrected upright microscopes | |
| Nikon CFI infinity-corrected inverted microscopes |
Typical Applications
High-resolution fluorescence imaging (widefield, TIRF, and structured illumination)
Brightfield and phase contrast at 60x with variable depth of field
Darkfield and oblique illumination microscopy
Live cell imaging requiring a balance of field of view and resolution
Pathology, cytology, and microbiology at oil immersion magnification
