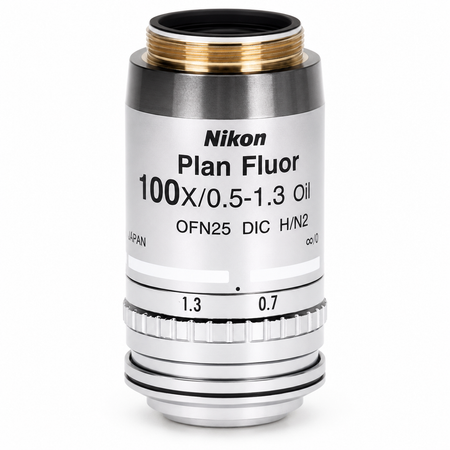

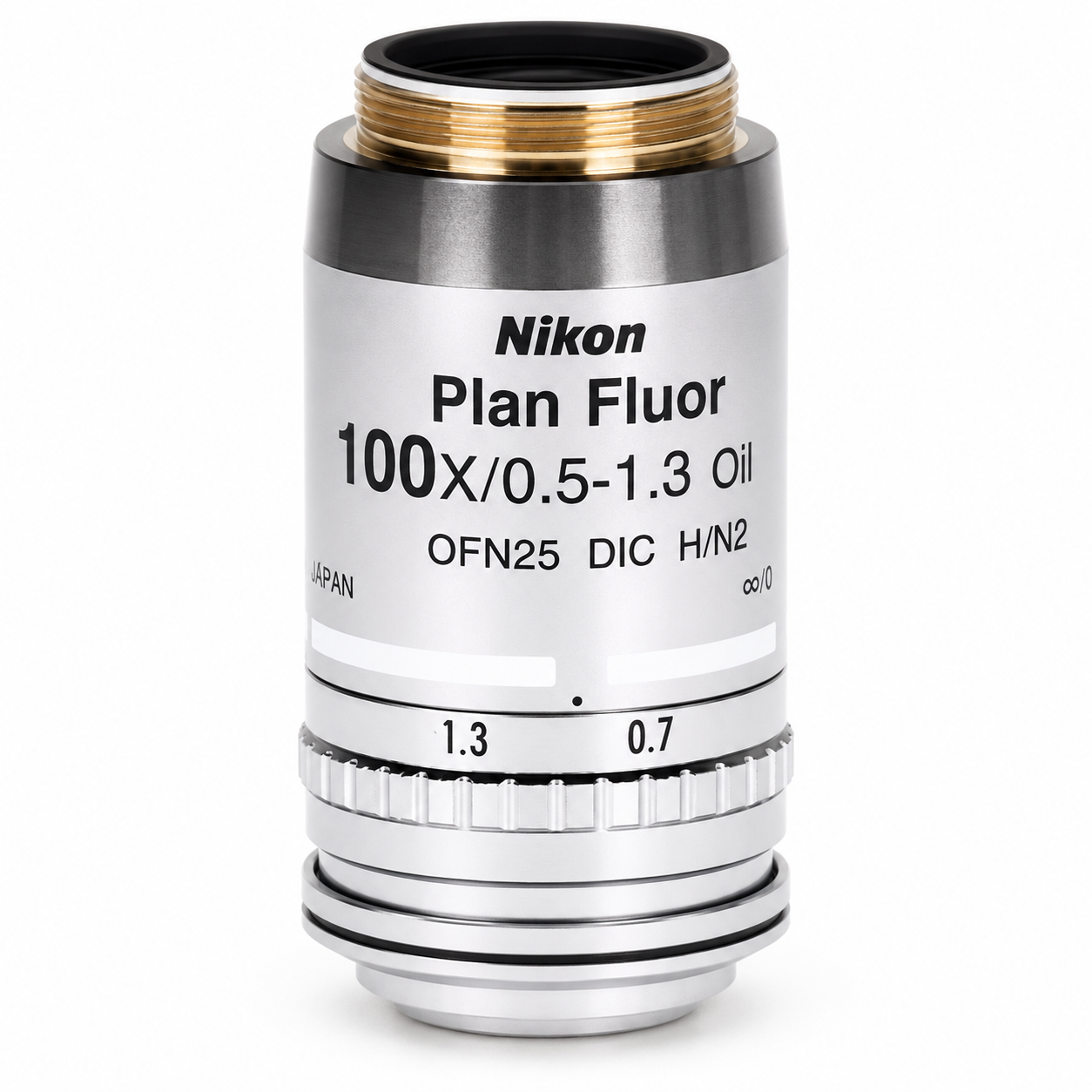

Nikon CFI Plan Fluor 100X Oil Objective W/Iris NA 0.5-1.3
Regular price
$3,960.00
Nikon CFI Plan Fluor 100X Oil Objective with Iris — variable NA 0.5–1.3 for flexible high-magnification imaging across multiple modalities.
KEY FEATURES
- Variable NA Iris Diaphragm: Stepless adjustment from NA 0.5 to 1.3 — balance resolution, depth of field, and contrast without changing objectives
- Maximum NA 1.3: Full aperture delivers high-resolution imaging for fluorescence, brightfield, and fine structural detail
- Plan Fluor Optics: Flat-field fluorite correction with broad fluorescence transmission across UV and visible wavelengths
- Oil Immersion: High light collection and resolution at 100x for demanding imaging applications
- Multi-Modality: Suitable for brightfield, fluorescence, darkfield, phase contrast, and oblique illumination
Backed by Spach Optics Warranty
Secure Packaging & Reliable Delivery
People-Powered Support
Technical Specifications
| Magnification | 100x |
| Immersion Medium | Oil |
| Numerical Aperture | 0.5–1.3 (variable, iris diaphragm) |
| Optical Correction | Plan Fluor (fluorite) |
| Iris Diaphragm | Yes (stepless NA adjustment) |
| Microscope Type | CFI infinity-corrected (upright and inverted) |
| Part Number | MRH02902 |
| Country of Origin | Japan |
| Condition | New |
Microscope Compatibility
| Nikon CFI infinity-corrected upright microscopes | |
| Nikon CFI infinity-corrected inverted microscopes |
Typical Applications
High-resolution fluorescence imaging (widefield, TIRF, and structured illumination)
Brightfield and phase contrast at 100x with variable depth of field
Darkfield and oblique illumination microscopy
Microbiology: bacterial morphology, flagella, and fine structural detail
Pathology, cytology, and hematology at oil immersion magnification
