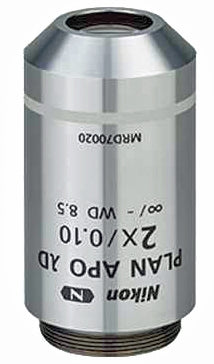

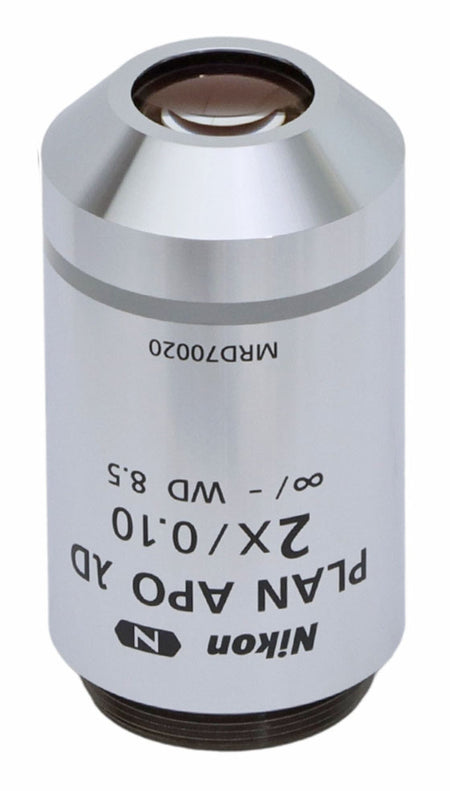

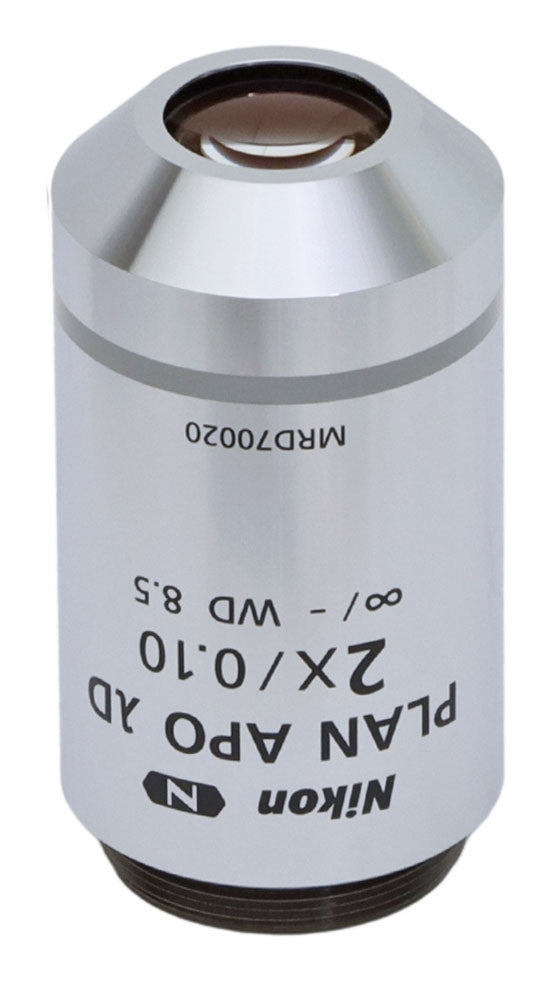

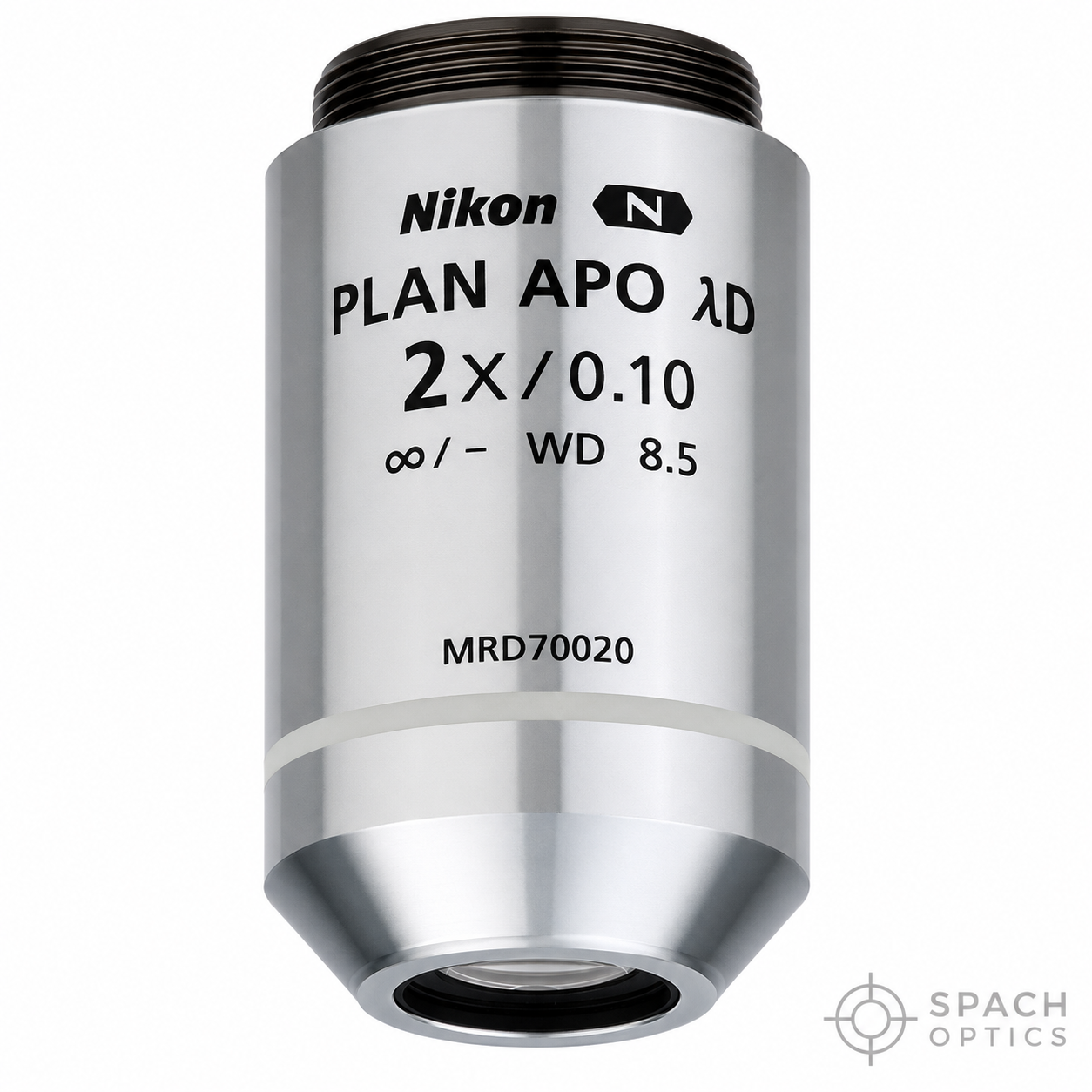

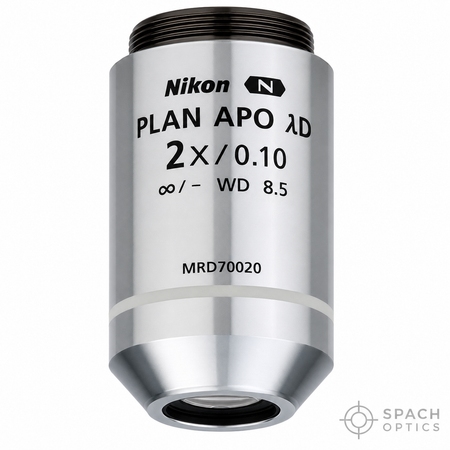

Nikon CFI Plan Apo Lambda D 2X Microscope Objective

In stock

SKU: MRD70020

Regular price $1,750.00
Nikon CFI Plan Apo Lambda D 2X Microscope Objective

KEY FEATURES

  • Premium plan apochromat objective from Nikon's Lambda D series for ultra-wide-field imaging
  • 2X magnification with 0.10 numerical aperture for maximum field coverage
  • Exceptional apochromatic correction across UV to near-IR spectrum for multi-color fluorescence
  • 8.5mm working distance provides clearance for thick specimens and culture vessels
  • M25 thread compatible with Nikon CFI60 infinity-corrected microscope systems
  • Brand new condition with full factory specifications
Backed by Spach Optics Warranty

Secure Packaging & Reliable Delivery

People-Powered Support

Product Overview

The Nikon CFI Plan Apo Lambda D 2X is an ultra-low-magnification plan apochromat objective engineered to deliver exceptional optical performance across the widest possible field of view. As part of Nikon's prestigious Lambda D series, this objective combines advanced apochromatic correction with superior flatness of field, ensuring accurate color reproduction and minimal chromatic aberration across an extended wavelength range from ultraviolet through visible to near-infrared. The 2X magnification provides the maximum field coverage available in a research-grade objective, making it ideal for whole-slide overview imaging, large specimen navigation, and applications requiring contextual visualization of entire samples. Despite its low magnification, the Lambda D design maintains the high optical quality expected from an apochromat objective, with excellent transmission efficiency and minimal optical aberrations. The 8.5mm working distance provides adequate clearance for standard slides, culture vessels, and microplates, while the plan optical design ensures edge-to-edge sharpness across the entire field. Compatible with Nikon's CFI60 infinity optical system, this objective integrates seamlessly with Eclipse, Ti2, and Ni-E series research microscopes, making it an essential tool for laboratories conducting whole-slide scanning, digital pathology, high-content screening, and any application where maximum field coverage with premium optical quality is required.

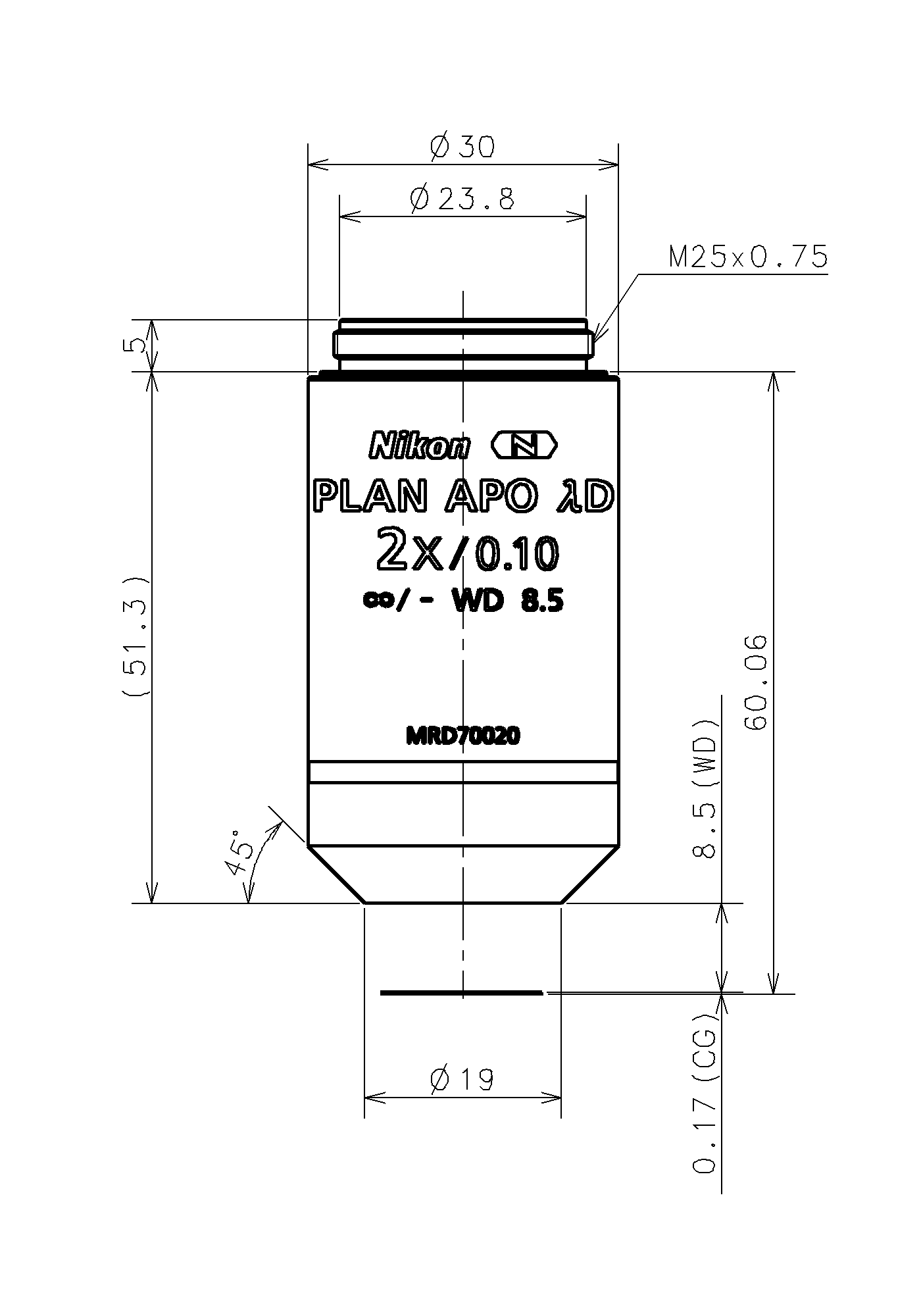

Technical Specifications

Model / Catalog Number CFI Plan Apo Lambda D 2X / MRD70020
Magnification 2X
Numerical Aperture (NA) 0.10
Optical Design Plan Apochromat, Infinity-Corrected (CFI60 Lambda D series)
Immersion Type Dry (air)
Working Distance 8.5mm
Chromatic Correction Apochromat (UV to near-IR)
Field Flatness Plan (flat field across entire image)
Thread Type M25 (25mm metric thread)
Compatibility Nikon CFI60 infinity-corrected microscopes (Eclipse, Ti2, Ni-E series)
Recommended Applications Whole-slide scanning, wide-field imaging, digital pathology, screening
Condition New
Country of Origin Japan

Microscope Compatibility

Typical Applications

Whole-slide scanning and digital pathology overview imaging
Large specimen navigation and contextual imaging
Multi-well plate imaging and high-content screening
Tissue section and organoid overview imaging
Wide-field fluorescence microscopy with maximum coverage
Automated imaging and stitching applications
Specimen localization before higher magnification imaging
Brightfield, phase contrast, and DIC microscopy
Educational demonstrations and presentations
