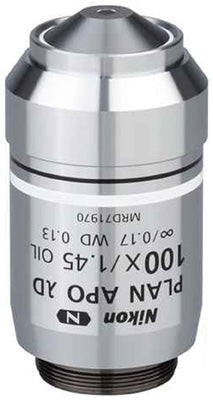

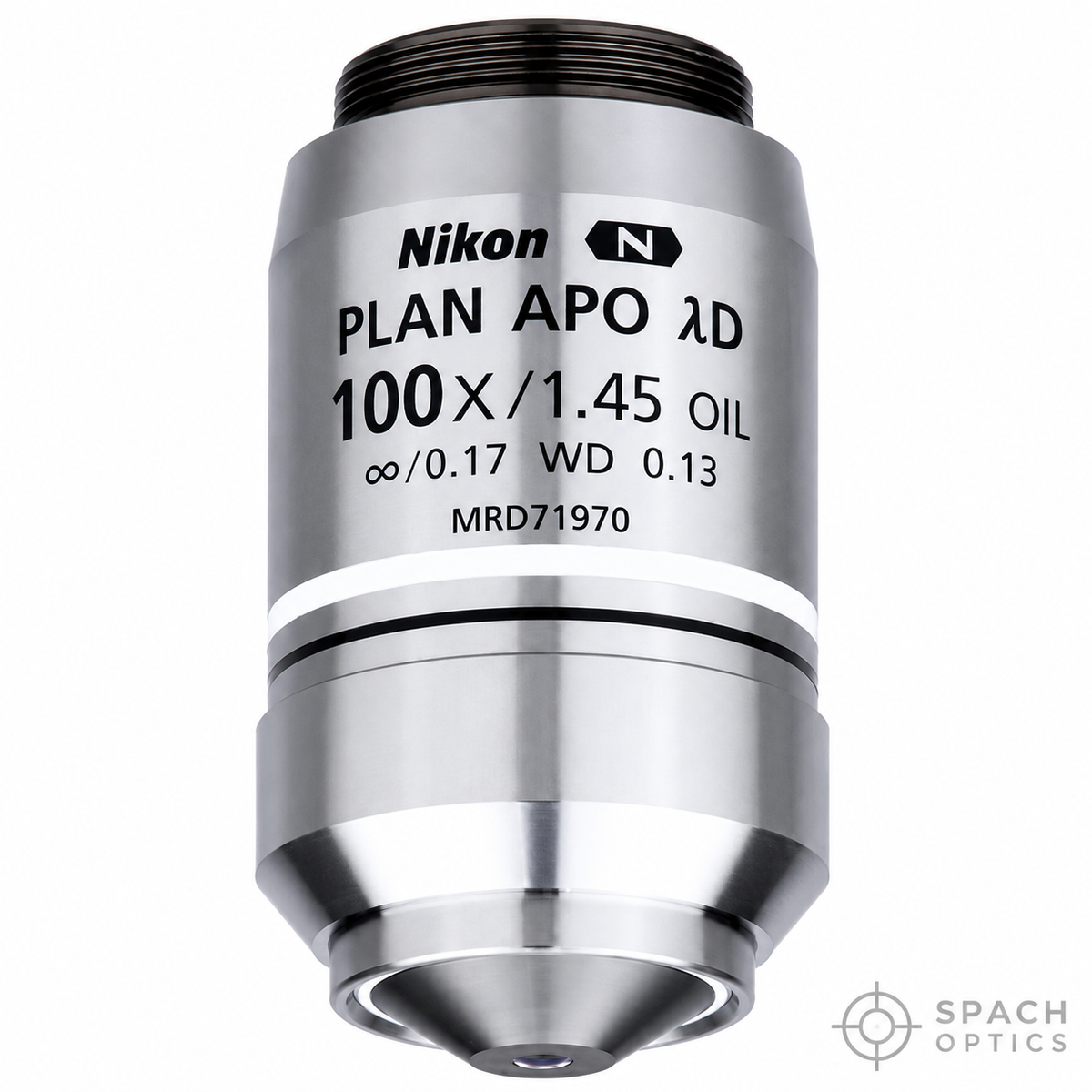

Nikon CFI Plan Apo 100x Lambda D Objective

In stock

SKU: MRD71970

Regular price $8,395.00
Premium plan apochromat objective from Nikon's Lambda D series for advanced imaging 100X magnification with ultra-high 1.45 numerical aperture for maximum resolution Superior apochromatic correction a

KEY FEATURES

  • Multi-channel fluorescence microscopy and quantitative imaging
  • Confocal laser scanning microscopy (CLSM)
  • Super-resolution microscopy techniques
  • High-resolution cellular and subcellular imaging
  • Immunofluorescence and co-localization studies
  • Live cell imaging and time-lapse microscopy
  • Digital pathology and whole-slide imaging
  • Advanced research microscopy requiring apochromatic correction
Backed by Spach Optics Warranty

Secure Packaging & Reliable Delivery

People-Powered Support

Product Overview

The Nikon CFI Plan Apo 100X Lambda D represents the pinnacle of high-magnification objective design, combining Nikon's renowned Lambda series apochromatic correction with an ultra-high numerical aperture for maximum resolving power. As a plan apochromat objective, it delivers exceptional chromatic correction across an extended wavelength range from ultraviolet through visible to near-infrared, ensuring accurate color reproduction and minimal chromatic aberration in multi-channel fluorescence imaging. The "Lambda" designation signifies Nikon's advanced optical design that provides superior flatness of field and high transmission efficiency across the entire spectrum, making this objective ideal for quantitative fluorescence microscopy, confocal imaging, and multi-color imaging applications where color fidelity is critical. With an ultra-high numerical aperture of 1.45, this objective provides the maximum resolving power available for oil immersion objectives, enabling visualization of the finest cellular structures and subcellular details. The plan optical design ensures exceptional edge-to-edge sharpness across the entire field, essential for digital imaging, whole-field analysis, and applications requiring uniform image quality. Compatible with Nikon's CFI60 infinity optical system, this objective integrates seamlessly with Eclipse, Ti2, and Ni-E series research microscopes, delivering professional-grade performance for laboratories conducting cutting-edge biological and biomedical research requiring the absolute highest optical quality at 100X magnification. This objective is in new condition.

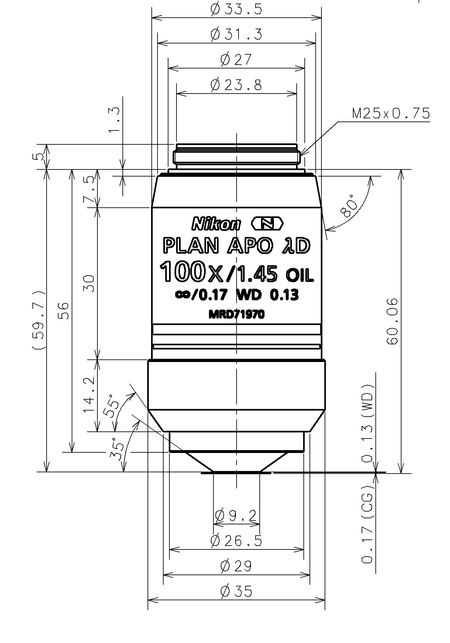

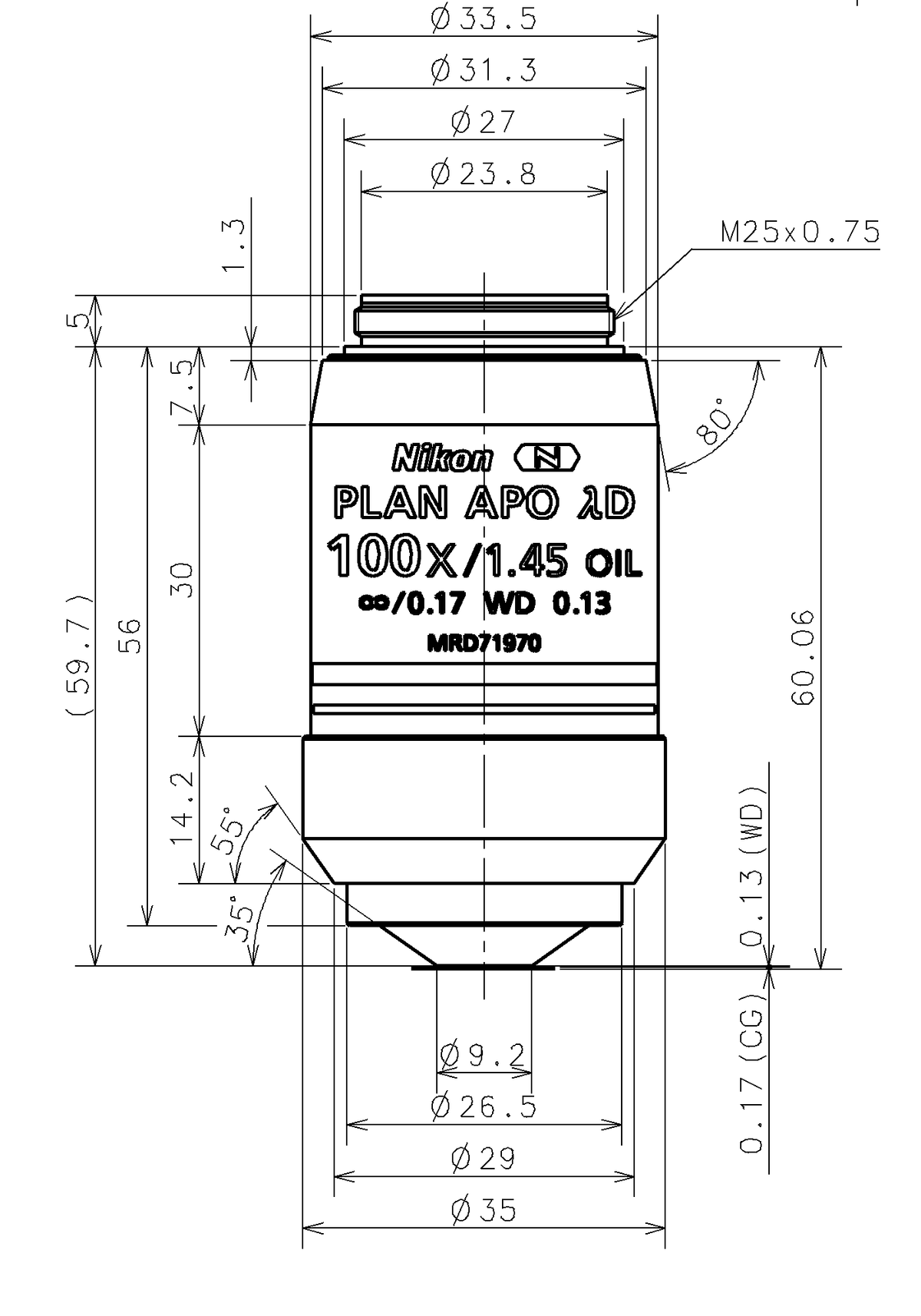

Technical Specifications

Model / Catalog Number Nikon CFI Plan Apo 100X Lambda D / MRD71970
Magnification 100X
Numerical Aperture (NA) 1.45 (ultra-high)
Optical Design Plan Apochromat, Infinity-Corrected (CFI60 Lambda D series)
Immersion Type Oil immersion
Working Distance 0.16mm
Chromatic Correction Apochromat (UV to near-IR)
Field Flatness Plan (ultra-flat field across entire image)
Thread Type M25 (25mm metric thread)
Compatibility Nikon CFI60 infinity-corrected microscopes (Eclipse, Ti2, Ni-E series)
Recommended Applications Multi-channel fluorescence, confocal, super-resolution, quantitative imaging
Condition New

Microscope Compatibility

Typical Applications

Multi-channel fluorescence microscopy and quantitative imaging
Confocal laser scanning microscopy (CLSM)
Super-resolution microscopy techniques
High-resolution cellular and subcellular imaging
Immunofluorescence and co-localization studies
Live cell imaging and time-lapse microscopy
Digital pathology and whole-slide imaging
Advanced research microscopy requiring apochromatic correction
