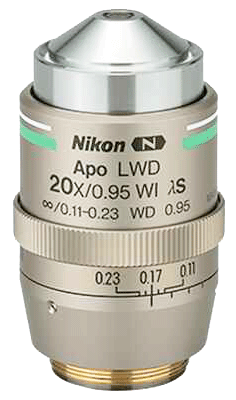

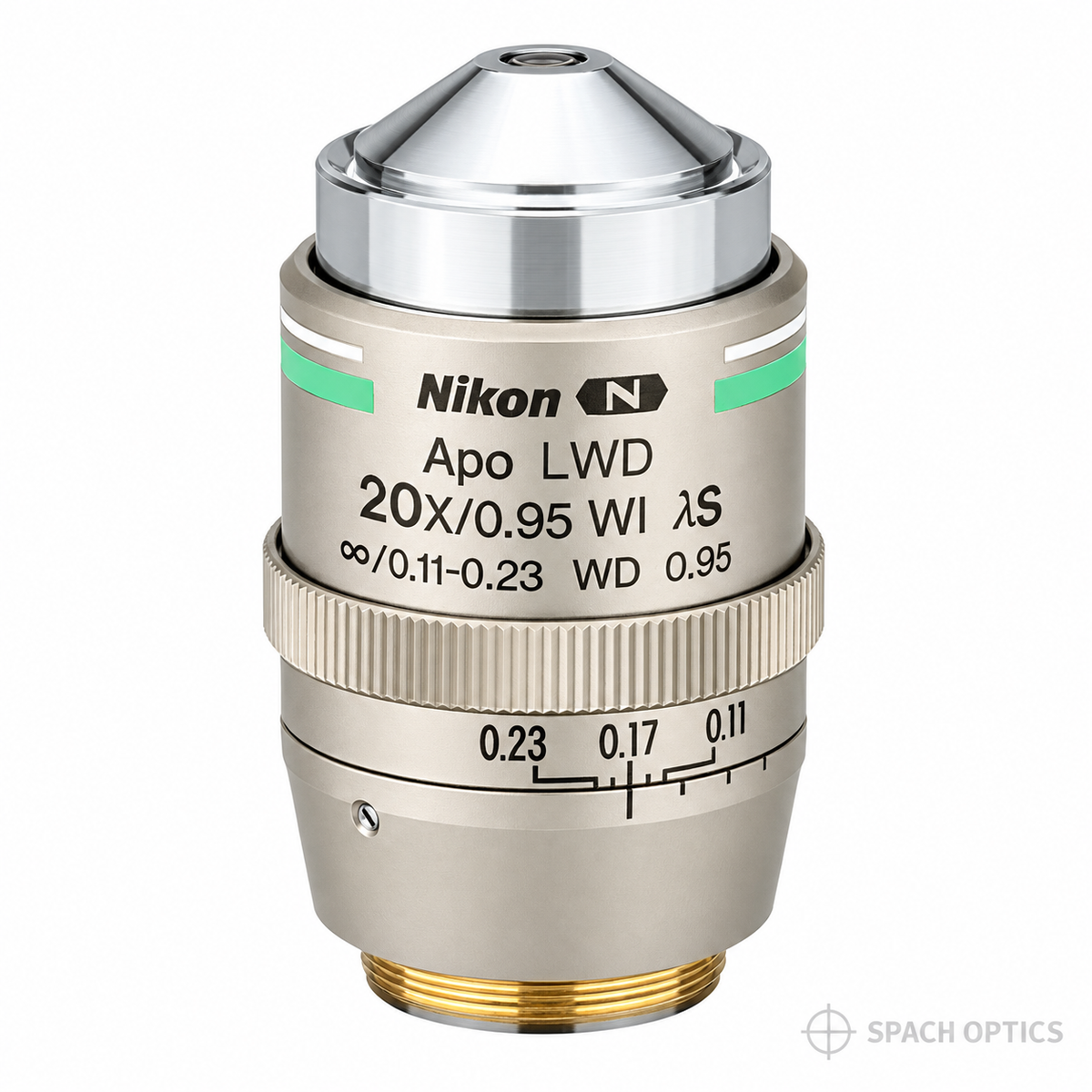

Nikon CFI Apochromat Lambda S LWD 20X Water Immersion Objective | MRD77200

SKU: MRD77200

$21,400.00
Nikon CFI Apochromat Lambda S LWD 20X Water Immersion Objective — MRD77200 — a high-NA, long working distance water immersion objective from Nikon’s premier Lambda S series, engineered for high-quality imaging through plastic cell-culture dishes, glass coverslips, and thick specimens in live-cell and stem cell research workflows.

KEY FEATURES

  • 20X magnification with Apochromat Lambda S correction
  • Numerical Aperture: 0.95 — exceptional NA for a water immersion LWD objective
  • Working Distance: 0.99–0.9mm (adjustable)
  • Coverslip correction: 0.11–0.23mm
  • Water immersion — compatible with plastic dishes and glass coverslips
  • M25 thread — Nikon CFI60 infinity corrected
  • Compatible with all Nikon infinity-corrected microscopes
  • Catalog No. MRD77200
  • Condition: New
  • University purchase orders accepted
Request a Quote
Backed by Spach Optics Warranty

Secure Packaging & Reliable Delivery

People-Powered Support

Product Overview

The Nikon CFI Apochromat Lambda S LWD 20X Water Immersion Objective (MRD77200) is part of Nikon’s advanced Lambda S series — specifically designed for stem cell research, drug discovery, and high-content cell screening workflows. The combination of 0.95 NA and long working distance (0.99–0.9mm adjustable) enables high-quality imaging through plastic cell-culture dishes as well as standard glass coverslips, eliminating the need to transfer cells to glass for high-resolution observation. The Apochromat Lambda S correction delivers the highest level of chromatic aberration correction for sharp, high-contrast multi-color fluorescence images across the full visible spectrum. The adjustable working distance and coverslip correction collar (0.11–0.23mm) accommodate a wide range of vessel types and coverslip thicknesses, enhancing throughput in cell screening and live imaging applications.

Technical Specifications

Magnification 20X
Optical Correction Apochromat Lambda S
Numerical Aperture (NA) 0.95
Working Distance 0.99–0.9mm (adjustable)
Coverslip Correction 0.11–0.23mm
Immersion Water
Thread M25 (Nikon CFI60)
Catalog No. MRD77200
SKU MRD77200
Country of Origin Japan
Condition New

Microscope Compatibility

Typical Applications

Live-cell imaging through plastic cell-culture dishes and multi-well plates
Stem cell research and drug discovery screening
High-content cell screening and automated imaging workflows
Multi-color fluorescence and confocal microscopy at 20X
University and research laboratory use
