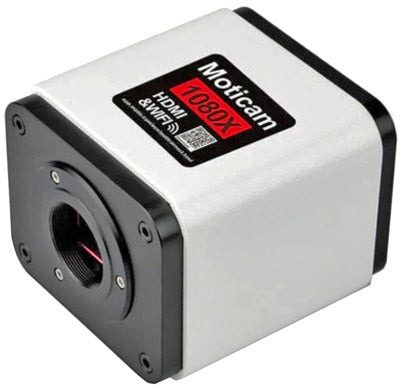

Motic MOTICAM 1080X Microscope Camera
Regular price
$1,150.00
Free Shipping
On orders over $500
2-Year Warranty
Full coverage
Expert Support
Technical help
| Model | Moticam 1080X |
| Sensor type | IMX185 |
| Sensor size | 1/1.9" |
| Imaging area | 7.20 x 4.05mm |
| Capture resolution | 2MP on SD card (3840x2160 pixels) |
| Pixel Size | 3.75 x 3.75μm |
| Scan mode | Progressive |
| Shutter mode | Rolling Shutter |
| G Sensitivity Dark Signal | 1120 mv with 1/30s; 0.15 mv with 1/30s |
| Exposure time | 0.06~918ms |
| Operating temperature | From -10 to +50 Degrees Celsius non-condensing |
| Operating humidity | 30~80%RH |
| Lens mount | C-Mount |
| Software | MotiConnect for Android/iOS; Motic Images Plus 3.1 for Windows/Mac OS |
| Package includes | 12V Power Adapter, CS Ring, Motic 4-dot calibration slide, Dust Cap, Manual, 12mm lens, Adapter φ30/φ38, Macro Tube, Macro Calibration card |
| INTERFACE & BUTTON FUNCTIONS | |
| USB MultiPort | USB WiFi Dongle or USB Mouse |
| HDMI | HDMI Output |
| DC12V | DC12V Power in |
| SD | SD Card Slot |
| ON/OFF | Power On/Off Switch |
| LED | Power Off Red,Power On Blue |
| SPECIFICATION FOR HDMI OUTPUT | |
| UI Operation | With USD Mouse |
| Video Record | ASF Format 1080P 30fps in SD Card |
| Camera Control Panel | Including Exposure, Gain, White Balance, Color Adjustment, Sharpness and Denoising Control |
| Toolbar | Including Zoom, Mirror, Comparison, Freeze, Measure, Cross, Browser Function |
| Max. frames per second (fps*) | 30fps@1920x1080 |
| SPECIFICATION FOR WIFI OUTPUT | |
| UI Operation | MotiConnect & Motic Images Plus 3.1 |
| WiFi Performance | 802.11n 150Mbps; RF Power 20dBm(Maximum) |
| Maximum Connected Devices | 3~6(According to the Environment and Connection Distance) |
| White Balance | One Push White Balance |
| Color Technique | Ultra-Fine Color Engine (WiFi) |
| Recording System | Still Picture or Movie (WiFi) |
| Max. frames per second (fps*) | 25fps@1920x1080 |
