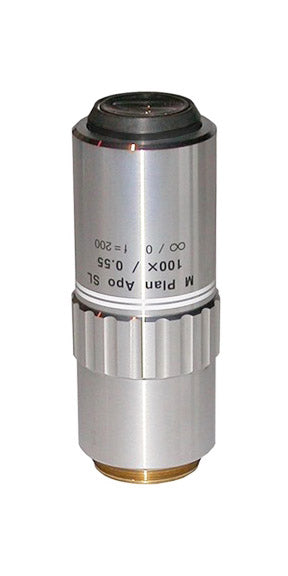

Mitutoyo 100x M Plan APO SL Objective 378-813-3
Regular price
$5,300.00
Mitutoyo M Plan Apo SL 100X Objective — Infinity Corrected, Long Working Distance (378-813-3).
KEY FEATURES
- 100X magnification — high-power imaging with exceptional resolving power (0.5µm)
- M Plan Apo (Apochromat) optics — superior chromatic and spherical correction for color-true, flat-field images
- NA 0.55 / WD 13.0mm — remarkable super-long working distance at 100X for non-contact and large-clearance applications
- Infinity corrected — compatible with modern infinity optical systems and tube lenses
- M26 thread — standard Mitutoyo mount
- Condition: New
Backed by Spach Optics Warranty
Secure Packaging & Reliable Delivery
People-Powered Support
Technical Specifications
| Type | Infinity Corrected Brightfield |
| Wavelength | Visible |
| Magnification | 100x |
| N.A. | 0.55 |
| Working Distance | 13.0mm |
| Focal Length | 2mm |
| Resolving Power | 0.5µm |
| Focal Depth | 0.9µm |
| Field of View with Ø24 Eyepiece | Ø0.24 |
| Real Field of View with 1/2" Chip Camera | 0.05 x 0.06 |
| Thread Size | M26 |
| Part Number | 378-813-3 |
Microscope Compatibility
Typical Applications
Non-contact semiconductor and wafer inspection
MEMS, microelectronics, and PCB defect analysis
Precision metrology and surface roughness measurement
Inspection of tall or recessed features on industrial components
Machine vision and automated optical inspection (AOI) systems
