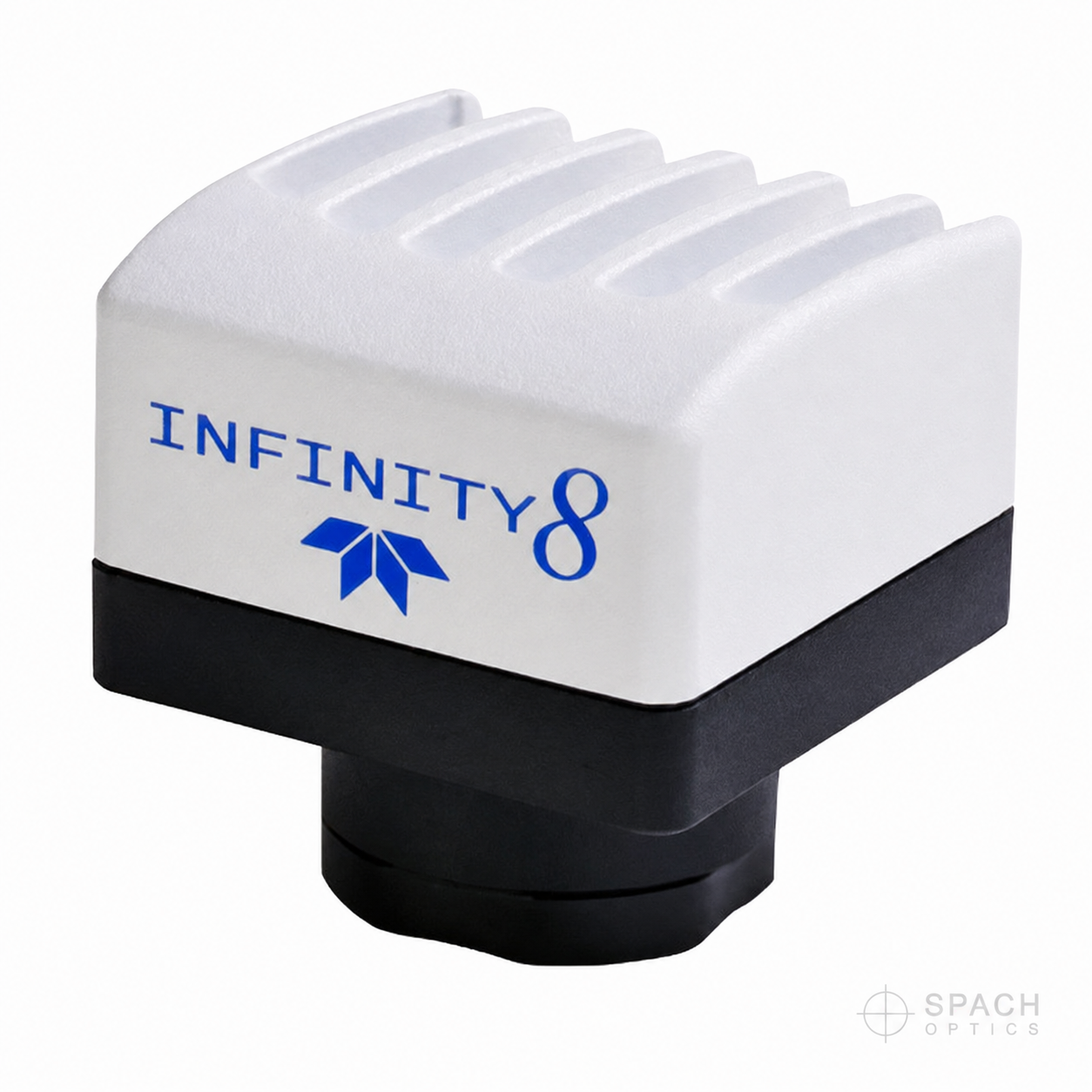

Teledyne Lumenera Infinity 8-9C 8.9 Megapixel Color USB3 Microscope Camera
Regular price
$4,995.00
Lumenera INFINITY8-9C — 8.9 MP Sony IMX267 global shutter CMOS, 4K at 31 fps, USB3, C-mount. INFINITY ANALYZE software included. Compatible with all microscope brands.
KEY FEATURES
- 8.9 MP Sony IMX267 Pregius global shutter CMOS sensor — eliminates rolling shutter artifacts for accurate live and captured imaging
- 31 fps at 4K (3840 × 2160) and 62 fps at HD (1920 × 1080) full field of view — lag-free live display

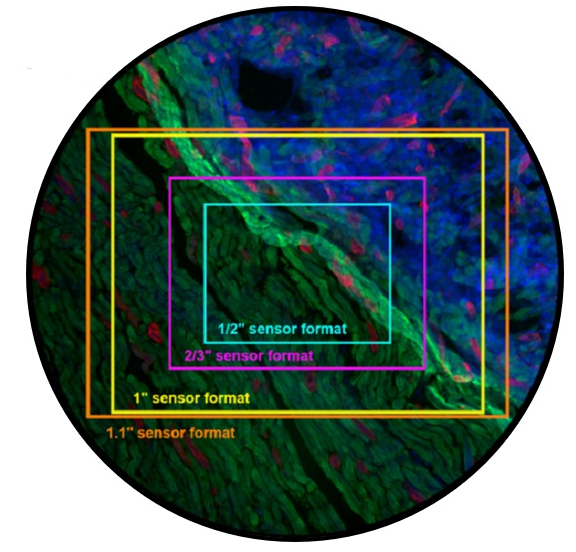

- 1" optical format sensor — large field of view to see more of the sample
- 73.3 dB dynamic range, 2.3 e⁻ read noise, 10.6K e⁻ full well capacity — exceptional image quality across contrast conditions
- True-to-life color optimized for LED, fluorescence, daylight, and halogen illumination

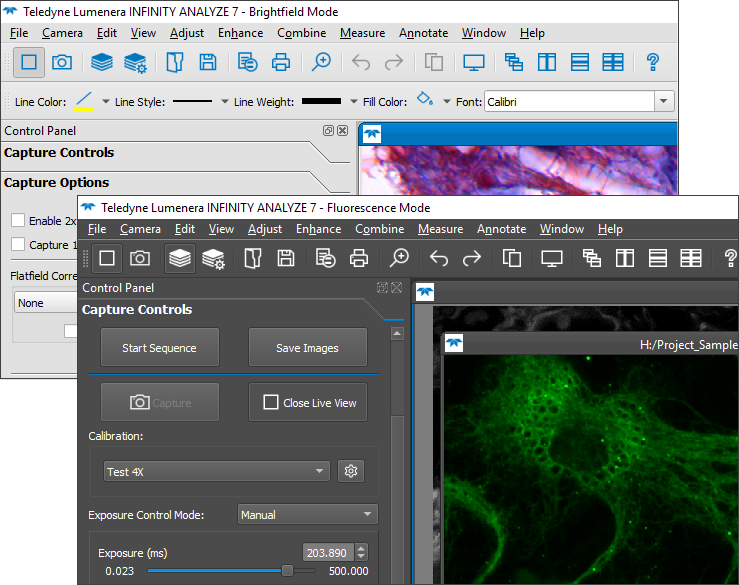

- INFINITY ANALYZE software included at no cost — multi-user, multi-computer, Windows and Mac compatible; supports measurement, annotation, tiling, and focus stacking
- Third-party software support: Image-Pro (Media Cybernetics), MetaMorph, Micro-Manager
- C-mount lens mount — compatible with all microscope brands; recommended coupler 1X
- USB3 bus-powered (5V, 2.3–3.6W) — no external power supply required
Backed by Spach Optics Warranty
Secure Packaging & Reliable Delivery
People-Powered Support
Technical Specifications
| Image Sensor | Sony IMX267 Pregius global shutter CMOS (color) |
| Resolution | 8.9 MP (4112 × 2176) |
| Optical Format | 1" |
| Pixel Size | 3.45 × 3.45 μm |
| Frame Rate | 31 fps at 4K (3840 × 2160); 62 fps at HD (1920 × 1080) |
| Dynamic Range | 73.3 dB |
| Bit Depth | 8 or 12-bit |
| Full Well Capacity | 10.6K e⁻ |
| Read Noise | 2.3 e⁻ |
| Interface | USB3 Micro-B |
| Lens Mount | C-mount |
| Power | 5V via USB3 (2.3–3.6W) |
| Mass | 108 g |
| Operating Temperature | 0–50°C |
| Software | INFINITY ANALYZE (included) |
| OS | Windows 7/8.1/10 (32 & 64-bit); macOS 10.15.7+ |
| Country of Origin | Canada (Ontario) |
Microscope Compatibility
| C-mount compatible — fits all major microscope brands | |
| Recommended coupler | 1X C-mount |
| Windows 7, 8.1, 10 (32-bit and 64-bit) | |
| macOS 10.15.7 or later | |
| Image-Pro by Media Cybernetics | |
| MetaMorph | |
| Micro-Manager |
Typical Applications
Brightfield microscopy imaging and documentation
Darkfield microscopy
Differential interference contrast (DIC) imaging
Polarized light microscopy
Fluorescence microscopy
Clinical research, pathology, and laboratory conferencing
Industrial inspection and quality control imaging
