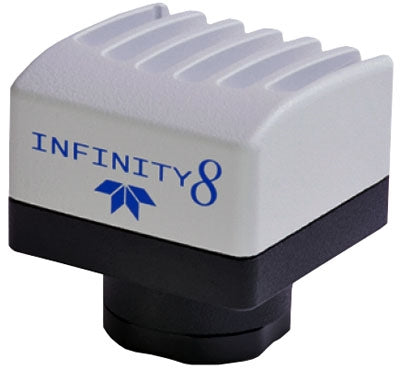

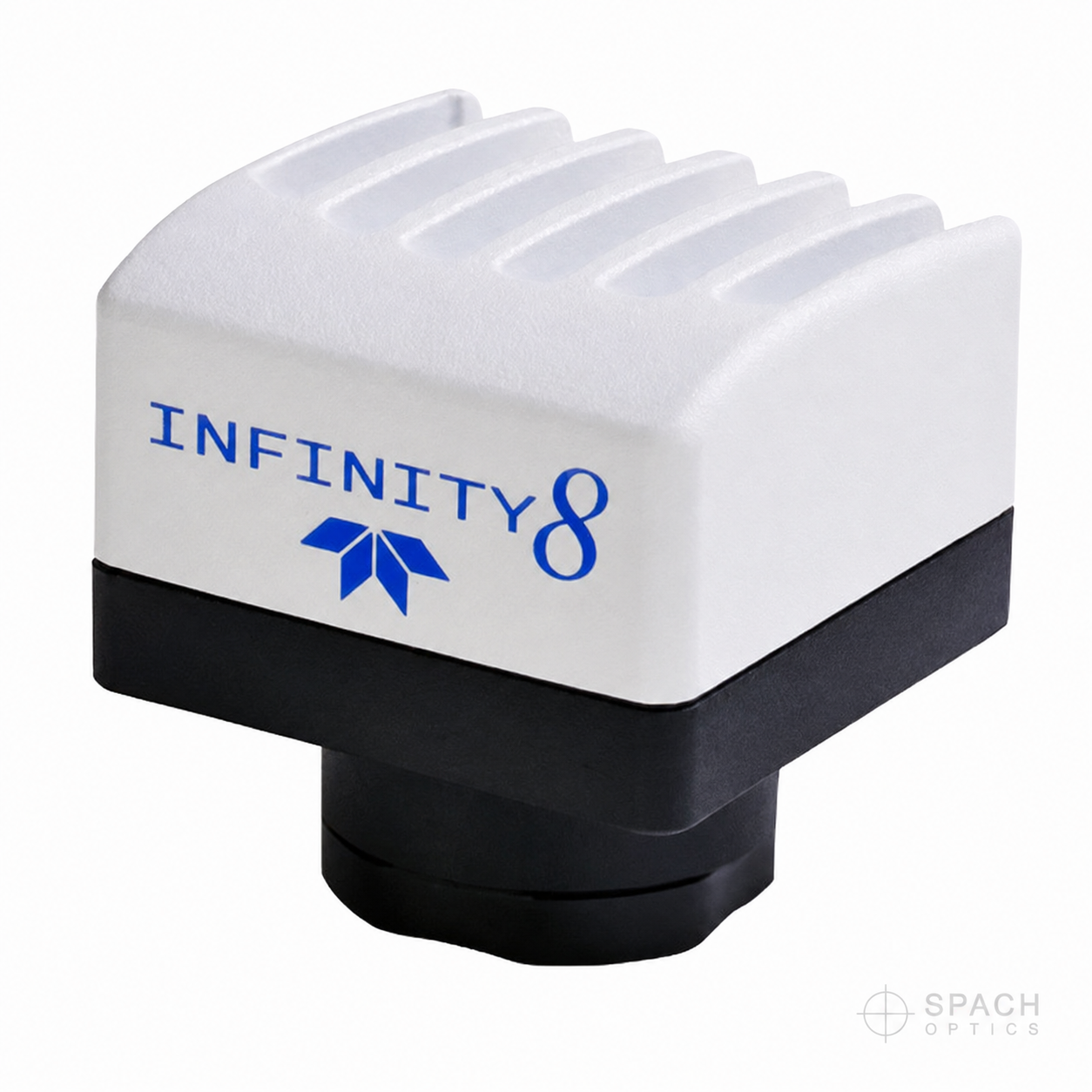

Lumenera INFINITY8-2M USB3 Monochrome Fluorescence Camera

Ultra-sensitive monochrome camera for fluorescence microscopy and low-light imaging — ideal for life science research, fluorescence applications, and demanding scientific documentation requiring exceptional sensitivity and high-speed capture.

• 🌟 Ultra-Sensitive 1" CMOS Sensor — Large format for exceptional low-light fluorescence imaging.
• ⚡ High-Speed Imaging — Up to 96 fps for smooth live viewing and rapid capture.
• 💡 FLIC Technology — Reduced read noise for improved signal detection in low light.
• 🔧 C-Mount Compatibility — Universal integration with Olympus, Nikon, Zeiss, Leica microscopes.
• 📊 INFINITY ANALYZE Software — Complete measurement and analysis tools included.

📸 Product Description

The Lumenera INFINITY8-2 USB3 Monochrome Microscope Camera is a highly sensitive digital imaging solution engineered for fluorescence microscopy, low-light imaging, and demanding scientific documentation. Featuring a large 1-inch optical format CMOS sensor with large pixel architecture, the INFINITY8-2 provides exceptional light sensitivity, low noise performance, and a wide field of view, making it ideal for imaging weak fluorescent signals and fine biological structures.

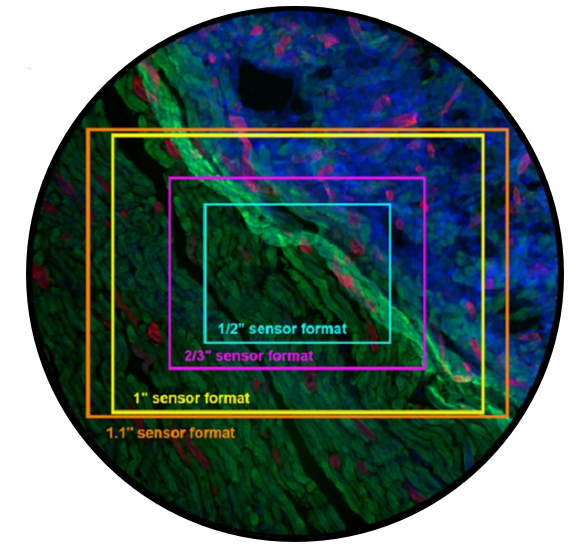

The large 1-inch sensor format with large pixel architecture allows the camera to collect significantly more light per pixel compared to smaller sensors, delivering exceptional sensitivity for fluorescence imaging and other low-light microscopy applications. This design is particularly valuable for detecting weak fluorescent signals, imaging dim specimens, and reducing exposure times to minimize photobleaching and phototoxicity in live-cell imaging applications.

High-speed imaging capability enables frame rates up to 96 frames per second at full resolution (1608 × 1104), providing responsive live imaging and rapid image acquisition. This performance ensures efficient workflows in fluorescence microscopy where rapid screening, real-time observation, and quick capture are essential. The high frame rate also improves the user experience during focusing, specimen positioning, and live demonstrations.

FLIC (Fluorescence Illumination Image Capture) technology is Lumenera's proprietary innovation that reduces read noise and improves signal detection in low-light conditions. This technology helps reveal faint fluorescent details with shorter exposure times, reducing photobleaching and enabling more sensitive detection of weak signals. FLIC technology is particularly beneficial for multi-channel fluorescence imaging and time-lapse studies where minimizing light exposure is critical.

Monochrome sensor design provides superior sensitivity compared to color cameras by eliminating the color filter array that reduces light transmission. Without the Bayer filter, every pixel receives the full intensity of light, resulting in approximately 2-3 times better sensitivity than equivalent color sensors. This makes monochrome cameras the preferred choice for fluorescence microscopy where maximum sensitivity is essential.

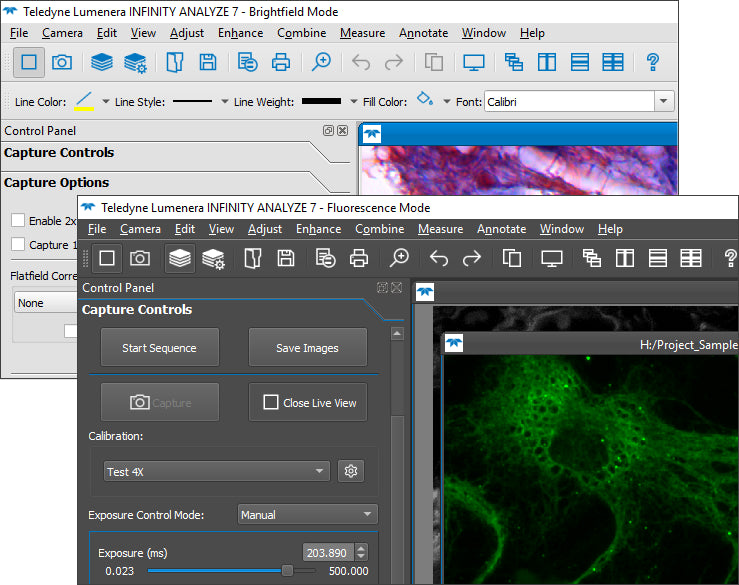

INFINITY ANALYZE software provides powerful tools for image acquisition, measurement, annotation, and analysis, delivering a complete microscopy imaging solution without recurring license fees. The software includes calibration tools, measurement functions, image enhancement capabilities, and export options for documentation and reporting. This comprehensive software package eliminates the need for additional imaging software purchases.

Universal C-mount compatibility enables easy integration with most modern microscopes from leading manufacturers including Olympus, Nikon, Zeiss, Leica, Mitutoyo, and Keyence. The standard C-mount interface ensures proper mechanical fit and optical alignment, making the INFINITY8-2 suitable for upgrading existing fluorescence microscope systems or integrating into new microscopy setups.

The USB 3.0 interface provides fast data transfer and plug-and-play connectivity, enabling efficient workflows in busy research laboratories. The combination of high sensitivity, high speed, and advanced FLIC technology makes the INFINITY8-2 particularly well-suited for fluorescence microscopy, live-cell imaging, and applications requiring exceptional low-light performance.

Precision Canadian engineering by Teledyne Lumenera ensures reliable performance and consistent image quality. The robust construction and high-quality components provide the durability required for demanding research and clinical environments where accurate documentation and reproducible results are essential.

🔎 Typical Applications

• Fluorescence microscopy and low-light imaging
• Live-cell imaging and time-lapse microscopy
• Biological and life science research
• Pathology and histology imaging
• Materials science and metallography
• Industrial inspection and quality control

📊 Technical Specifications

🔬 Microscope Compatibility

The INFINITY8-2 is compatible with microscopes equipped with trinocular camera ports or C-mount adapters.

Common compatible microscope systems include:

• Olympus BX, CX, and IX series microscopes
• Nikon Eclipse microscopes
• Zeiss Axio microscopes
• Leica DM series microscopes
• Stereo microscopes with camera ports

Note: A C-mount adapter may be required depending on microscope configuration.

📦 What's Included

• Lumenera INFINITY8-2 microscope camera
• USB-3 connection cable
• INFINITY ANALYZE imaging software
• Driver and software download access

💼 Condition & Availability

New or refurbished units may be available depending on inventory. All equipment is carefully inspected and tested prior to shipment.

University Purchase Orders Accepted

Thank you for viewing! Please contact us with any questions about this camera or your specific microscopy imaging requirements.
