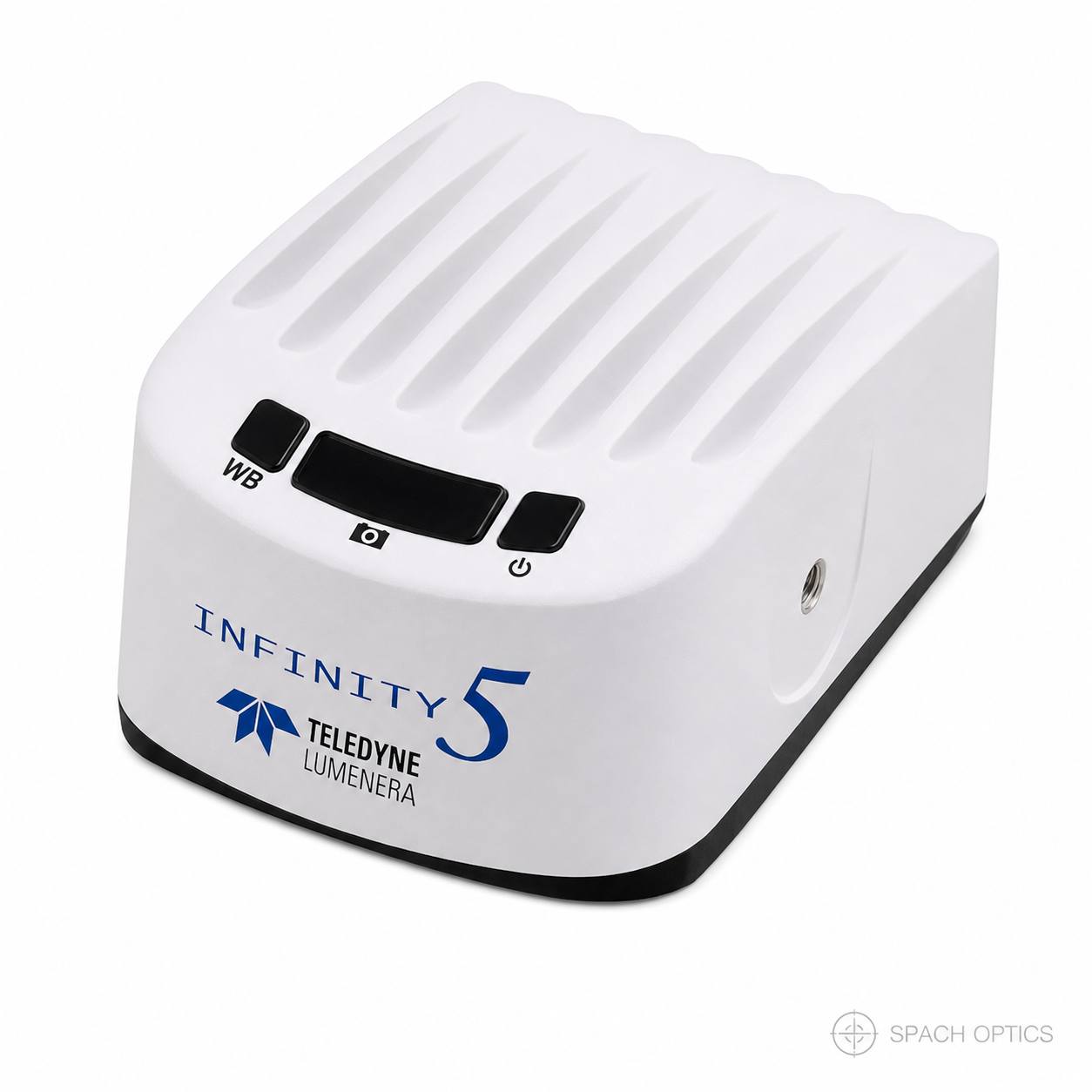

Lumenera INFINITY 5-5M 5.1 Megapixel Monochrome USB3 + HDMI Microscope Camera
Regular price
$4,475.00
Lumenera INFINITY5-5M — 5.1 MP Sony IMX250 monochrome global shutter CMOS, ~75 fps, dual USB3 + HDMI output, adjustable C-mount. INFINITY ANALYZE & CAPTURE included. 4-year warranty.
KEY FEATURES
- 5.1 MP Sony IMX250 Pregius monochrome global shutter CMOS — maximum light sensitivity without Bayer filter loss
- ~75 fps at full resolution (8-bit) — fast, lag-free live imaging
- Dual USB3 + HDMI output — simultaneous computer acquisition and live HDMI monitor display for teaching and conferencing
- On-camera soft-touch buttons — power, white balance, and image capture without a connected PC
- 2/3" optical format, 3.45 × 3.45 μm pixels, ~72 dB dynamic range, ~2.30 e⁻ read noise
- 2×2 binning (monochrome) for enhanced low-light sensitivity

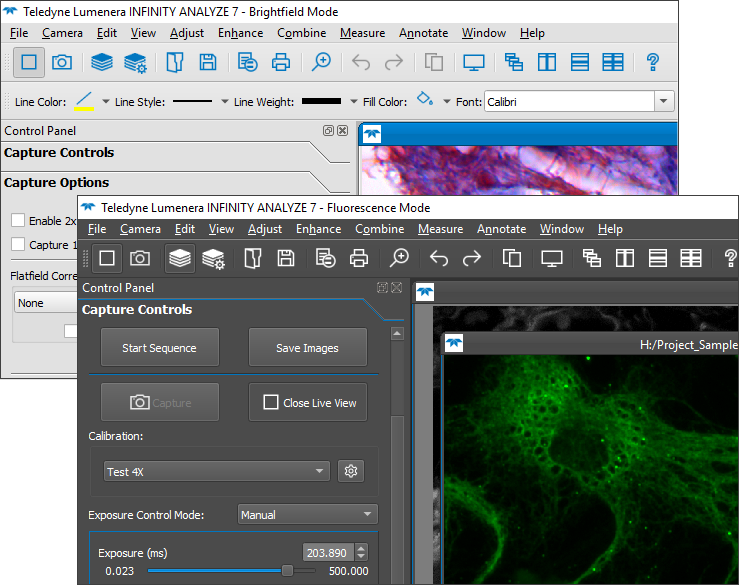

- INFINITY ANALYZE & CAPTURE software included — Windows and Mac compatible
- Third-party support: MetaMorph, Micro-Manager, MatLab, LabView, TWAIN, DirectShow
- 4-year warranty — industry-leading Lumenera coverage
Backed by Spach Optics Warranty
Secure Packaging & Reliable Delivery
People-Powered Support
Technical Specifications
| Image Sensor | Sony IMX250 Pregius global shutter CMOS (monochrome) |
| Resolution | 5.1 MP (2464 × 2056) |
| Optical Format | 2/3" |
| Pixel Size | 3.45 × 3.45 μm |
| Frame Rate | ~75 fps at full resolution (8-bit); 1080p60 HDMI |
| Dynamic Range | ~72 dB |
| Bit Depth | 8 or 12-bit |
| Full Well Capacity | ~10,500 e⁻ |
| Read Noise | ~2.30 e⁻ |
| Dark Current | 1.0 e⁻/s at 22°C ambient |
| Gain | ~1–16x (manual and automatic) |
| Binning | 2×2 (monochrome) |
| Interface | USB 3.1 Gen 1 + HDMI output |
| Lens Mount | Adjustable C-mount |
| Power | External 5V DC, 1.2A, ~4W (included) |
| Mass | 330 g |
| Operating Temperature | 0–50°C |
| Operating Humidity | 5–95% non-condensing |
| Software | INFINITY ANALYZE & CAPTURE (included) |
| OS | Windows 7/8.1/10 (32 & 64-bit); macOS 10.13+ |
| SKU | INFINITY5-5M |
| Warranty | 4 years |
| Country of Origin | Canada (Ontario) |
Microscope Compatibility
| Adjustable C-mount — compatible with all major microscope brands; recommended coupler 0.6x–0.7x | |
| USB 3.1 Gen 1 (USB 2.0 backward compatible) | |
| HDMI monitors and TVs | |
| Windows 7, 8.1, 10 (32-bit and 64-bit) | |
| macOS 10.13 or later | |
| MetaMorph | |
| Micro-Manager | |
| MatLab | |
| LabView | |
| TWAIN and DirectShow interfaces |
Typical Applications
Fluorescence microscopy — widefield, multi-channel, and low-light imaging
Phase contrast and DIC microscopy requiring maximum spatial resolution
Quantitative imaging and ratiometric measurements
Brightfield and darkfield microscopy documentation
Teaching and conferencing — simultaneous HDMI display for group viewing
Clinical research, pathology, and laboratory inspection
Industrial inspection and quality control imaging
