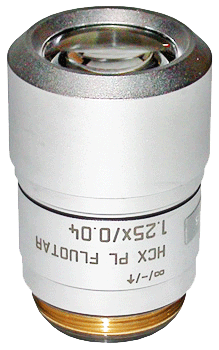

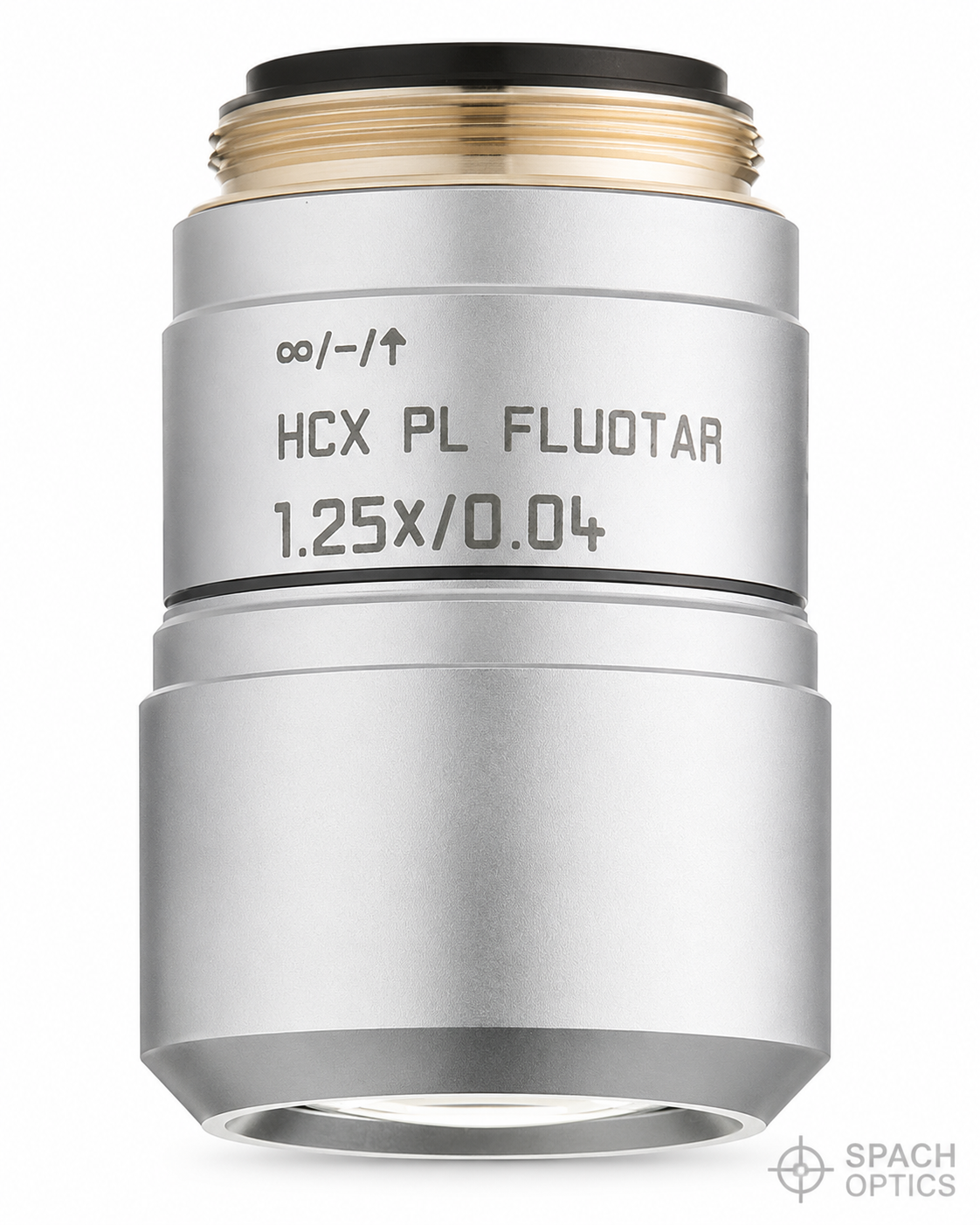

Leica HCX PL Fluotar 1.25x Microscope Objective

In stock

SKU: 506215-HCX

$1,395.00
$1,395.00 $3,052.00 save $1,657.00

KEY FEATURES

  • Leica HCX PL Fluotar 1.25x low-power, wide-field objective for Leica DM series microscopes
  • Numerical aperture of 0.04 with 3.7 mm working distance
  • M25 objective thread — compatible with and without coverglass
  • Excellent condition, flawless optics — made in Germany to Leica standards
Request a Quote
Backed by Spach Optics Warranty

Secure Packaging & Reliable Delivery

People-Powered Support

Product Overview

The Leica HCX PL Fluotar 1.25x (catalog number 506215) is a low-power, wide-field microscope objective designed for use with Leica DM series upright microscopes. With a numerical aperture of 0.04 and a working distance of 3.7 mm, it delivers a broad field of view ideal for initial specimen survey and orientation. The HCX PL Fluotar optical design provides flat-field correction and reliable performance across standard transmitted light and fluorescence applications. It mounts via the standard M25 objective thread and is compatible with both coverslipped and uncoverslipped specimens.

Technical Specifications

Catalog Number 506215
Magnification 1.25x
Numerical Aperture (NA) 0.04
Working Distance (WD) 3.7 mm
Immersion Dry
Objective Type HCX PL Fluotar
Objective Thread M25
Condition Excellent, flawless optics

Microscope Compatibility

Leica DM series upright microscopes (M25 objective thread)

Typical Applications

Low-magnification specimen survey and orientation on Leica DM series microscopes
Transmitted light brightfield microscopy
Fluorescence overview imaging
Wide-field survey of tissue sections and large specimens
