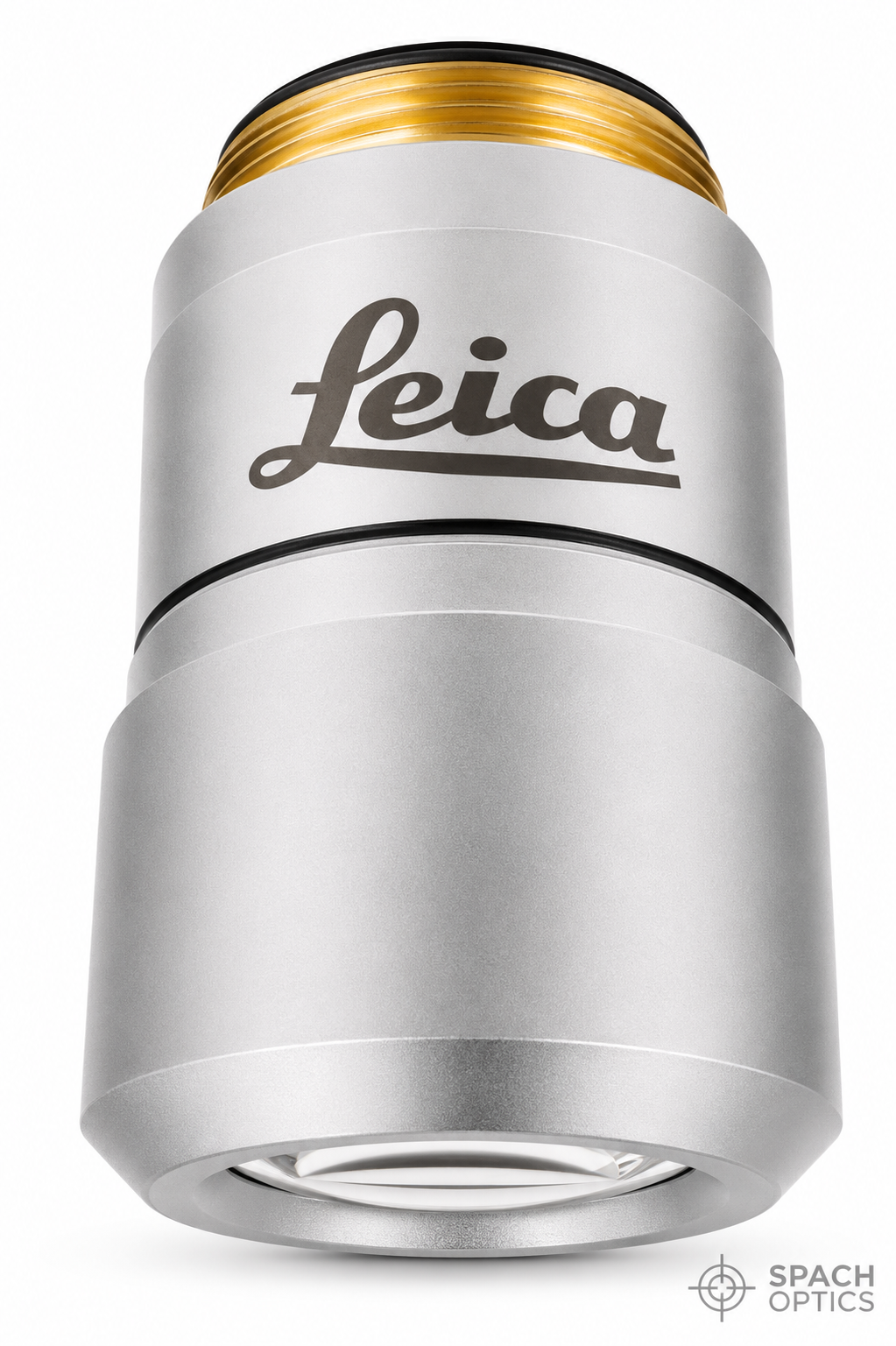

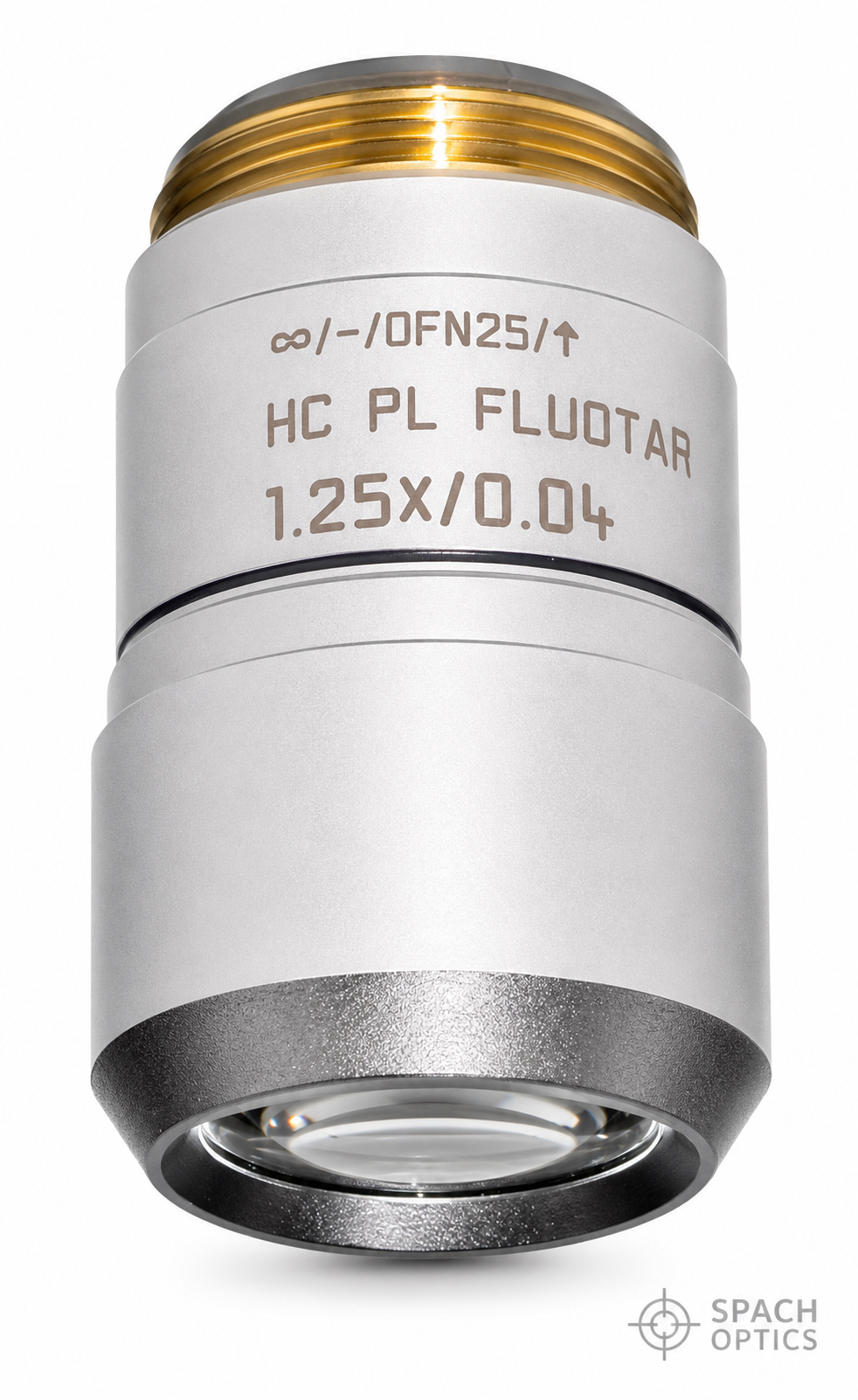

Leica HC PL Fluotar 1.25x Microscope Objective - Low Power, Wide Field

In stock

SKU: 11506215

$1,395.00
$1,395.00 $3,052.00 save $1,657.00

KEY FEATURES

  • Leica HC PL Fluotar 1.25x low-power, wide-field objective with field number 25
  • 3.7 mm working distance with UV (365nm) transmission capability
  • Supports TL-BF, TL-P, and fluorescence contrasting methods
  • M25 thread, compatible with and without coverglass — demonstration model, like new
Request a Quote
Backed by Spach Optics Warranty

Secure Packaging & Reliable Delivery

People-Powered Support

Product Overview

The Leica HC PL Fluotar 1.25x (catalog number 11506215) is a low-power, wide-field microscope objective designed for use with Leica DM series upright microscopes. With a numerical aperture of 0.04 and a working distance of 3.7 mm, it provides an expansive field of view (field number 25) ideal for initial specimen survey and orientation. The PL Fluotar optical design supports transmitted light brightfield (TL-BF), polarization (TL-P), and fluorescence (FLUO) contrasting methods, and offers UV transmission at 365nm. Compatible with both coverslipped and uncoverslipped specimens, it mounts via the standard M25 objective thread.

Technical Specifications

Catalog Number 11506215
Magnification 1.25x
Numerical Aperture (NA) 0.04
Working Distance (WD) 3.7 mm
Field Number (FN) 25
Immersion Dry
Objective Type PL Fluotar
Objective Thread M25
Coverglass With & without
Contrasting Methods TL-BF, TL-P, FLUO

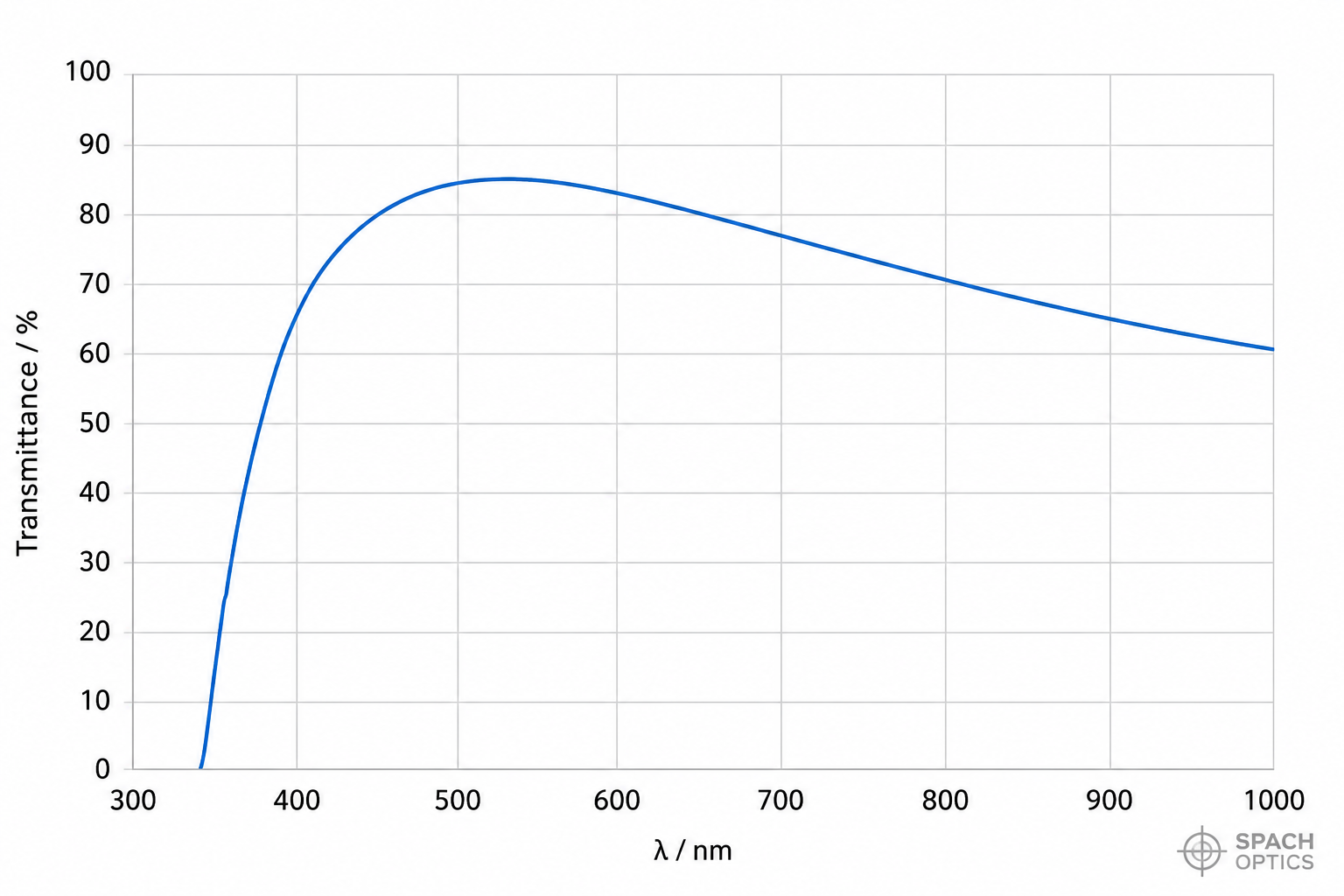

Transmission UV (365nm)
Spring Loaded No
Condition Demonstration Model, Like New

Microscope Compatibility

Leica DM series upright microscopes (M25 objective thread)

Typical Applications

Low-magnification specimen survey and orientation on Leica DM series microscopes
Transmitted light brightfield (TL-BF) and polarization (TL-P) microscopy
Fluorescence microscopy including UV excitation at 365nm
Wide-field overview imaging of tissue sections and large specimens
