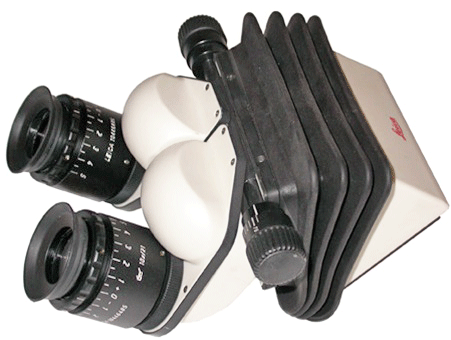

Leica Ergo Surgical Microscope Head 30-150 Degree Tilt

The Leica Ergonomic Type II L Head (10446797) is a professional observation head designed for surgical microscopy and advanced stereo microscopy applications requiring maximum ergonomic flexibility. Featuring an exceptional 30–150° tilt adjustment range, this head provides unparalleled positioning versatility, enabling operators to customize the viewing angle to match their specific working posture, procedure requirements, and operational environment.

The 120-degree adjustment span is significantly wider than standard ergonomic heads, offering critical advantages in surgical and clinical settings where operator positioning varies throughout procedures. Lower tilt angles (30–60°) support seated operation with standard surgical chairs, mid-range angles (70–100°) accommodate adjustable-height seating and semi-standing positions, and higher angles (110–150°) enable standing operation or elevated working positions. This flexibility is essential in surgical environments where the operator's position relative to the patient changes during procedures, or in shared facilities where multiple surgeons or technicians of different heights use the same microscope.

The Type II L designation indicates an advanced ergonomic configuration optimized for long-duration procedures. Surgical microscopy often requires operators to maintain visual focus for extended periods—sometimes hours—making ergonomic positioning critical for preventing neck strain, shoulder tension, and lower back discomfort. The wide tilt range enables operators to find and maintain a neutral head and neck position throughout the procedure, reducing fatigue and maintaining focus and precision.

The system includes two 10448028 adjustable 10× eyepieces with individual diopter adjustment, providing comfortable viewing with excellent eye relief. The diopter adjustment compensates for individual eye focus differences, ensuring sharp images for all operators without requiring corrective eyewear during procedures.

While designed primarily for Leica surgical microscopes, this head is also compatible with Leica stereo microscope systems, making it a versatile option for laboratories requiring surgical-grade ergonomics in non-clinical stereo microscopy applications such as precision assembly, micro-dissection, or advanced materials analysis.

This unit is in excellent pre-owned condition, fully tested and ready for demanding professional applications.
