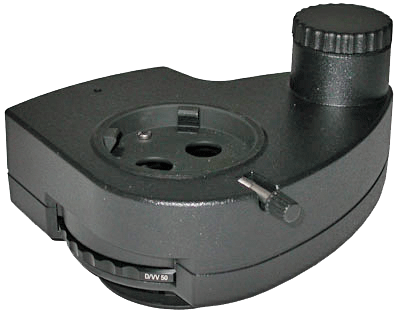

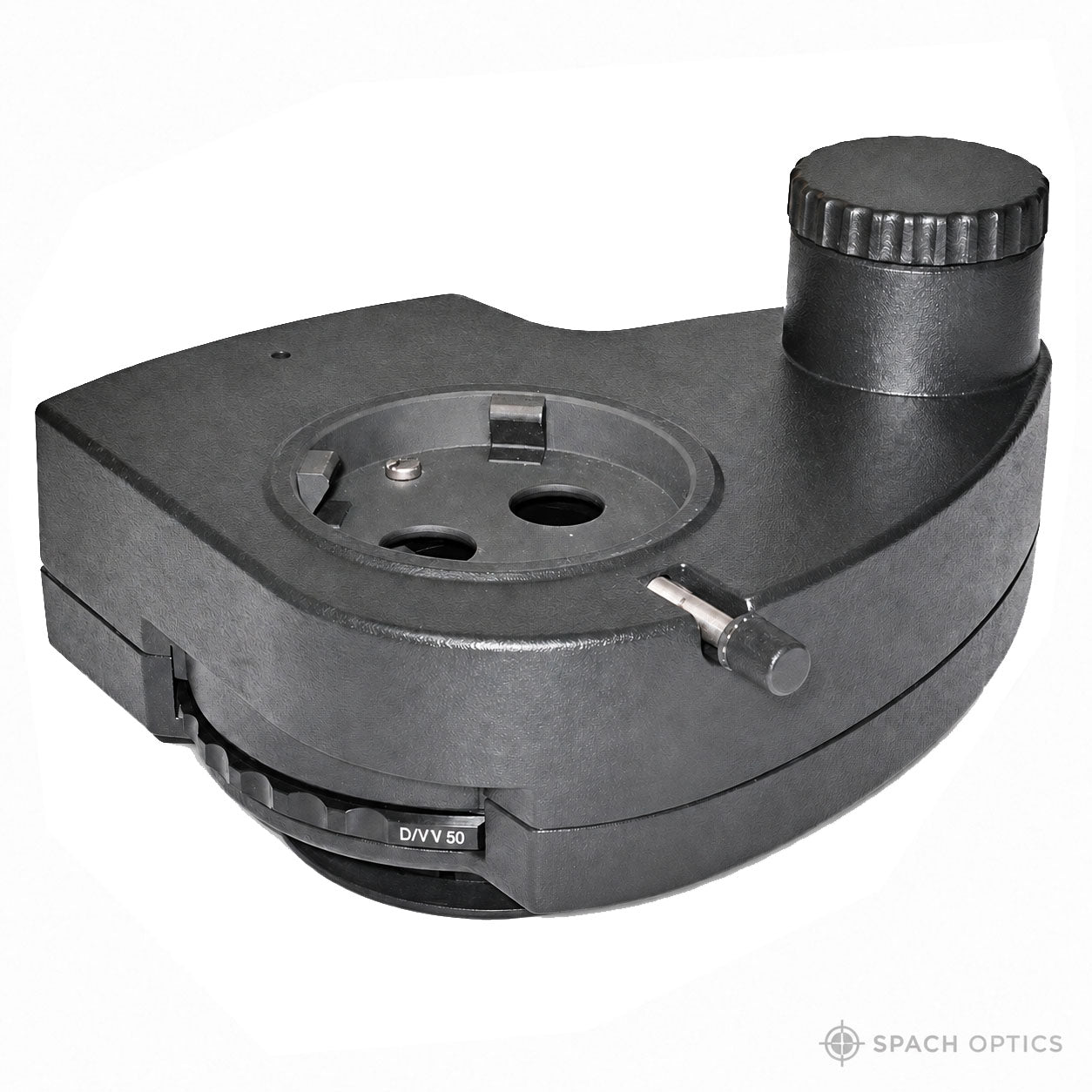

LEICA DOCUMENTATION TUBE HD V PHOTO PORT
Add professional imaging capability to your Leica stereo microscope with this versatile documentation tube, featuring:
- 📷 Dedicated camera port for high-definition image capture and documentation
- 🔀 Three-position light path selector: eyes only, camera only, or simultaneous viewing and imaging
- 👁️ Seamless switching between visual observation and photographic documentation
- 🔧 Universal compatibility with all Leica MZ and M series stereo microscopes
- ✨ New/open box condition with full factory performance
🔧 Product Description
The Leica Documentation Tube HD V transforms your stereo microscope into a complete imaging workstation by providing flexible light distribution between visual observation and camera capture. The three-position selector allows operators to optimize light allocation based on immediate needs: 100% to eyepieces for maximum brightness during manual inspection and manipulation, 100% to camera for optimal image quality during documentation sessions, or a split configuration enabling simultaneous viewing and real-time image monitoring. This flexibility is particularly valuable in applications requiring frequent transitions between hands-on work and photographic documentation, such as quality control inspection, electronics assembly and rework, biological dissection, or materials characterization. The HD V designation indicates high-definition optical performance optimized for modern digital cameras, ensuring sharp, color-accurate images across the entire field of view. Compatible with all Leica MZ and M series stereo microscopes, this documentation tube integrates seamlessly into existing systems and requires a Leica C-mount adapter (sold separately) matched to your specific microscope model for camera attachment.
🔎 Typical Applications
- Quality control inspection with photographic documentation requirements
- Electronics assembly, rework, and failure analysis imaging
- Biological dissection and specimen documentation
- Materials science characterization and reporting
- Forensic examination with evidence capture and archival
- Educational demonstrations with live camera projection or recording
📊 Key Specifications
| Specification | Details |
| Model Number | 10450302 (HD V Photo Port) |
| Configuration | Documentation tube with camera port |
| Light Path Positions | 3-position selector (eyes, camera, eyes + camera) |
| Optical Performance | High-definition (HD V) specification |
| Camera Mounting | Requires Leica C-mount adapter for specific microscope model (sold separately) |
| Compatible Microscopes | All Leica MZ and M series stereo microscopes |
| Condition | New/open box |
| Country of Origin | Germany |
