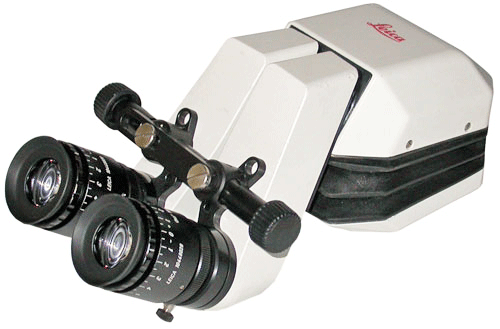

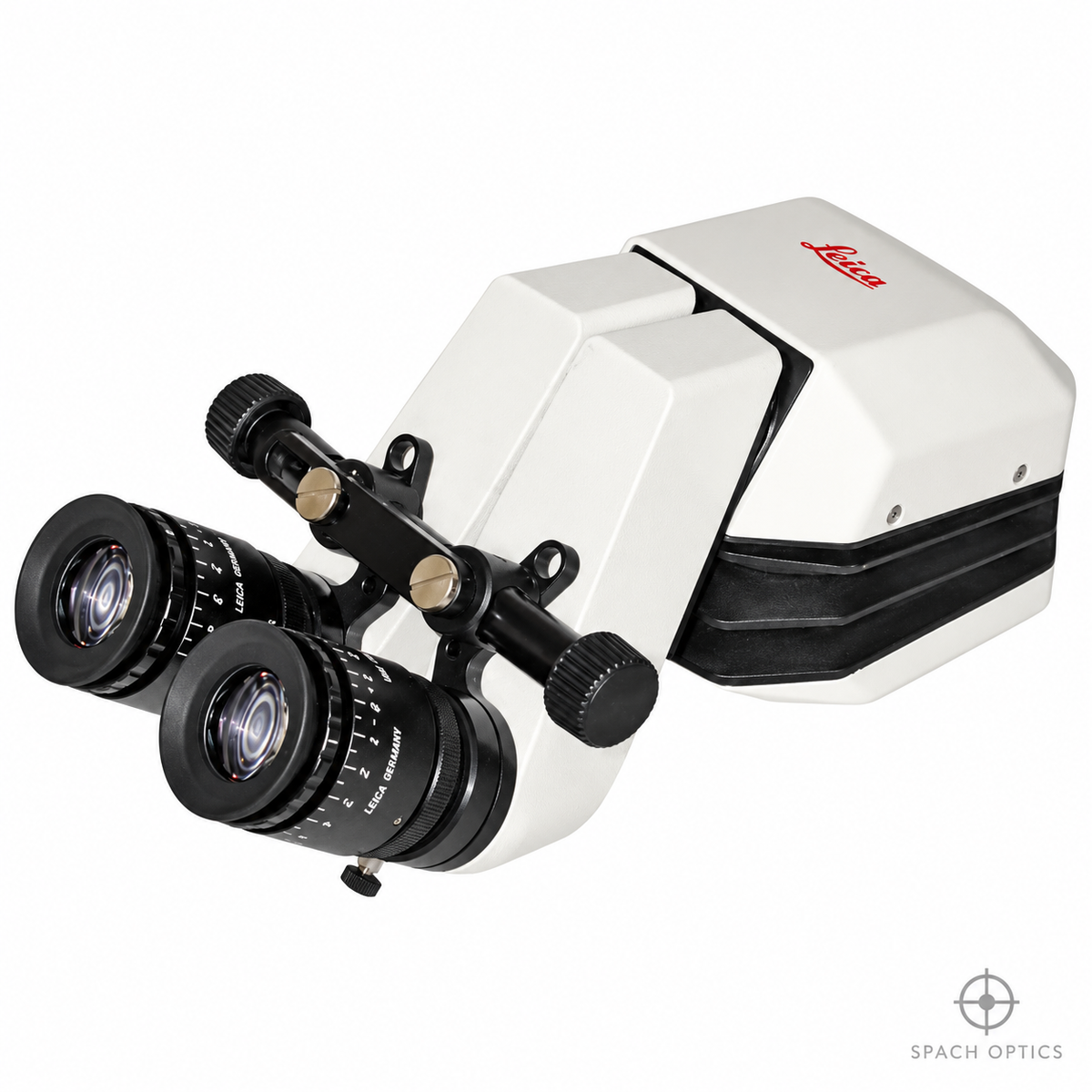

Leica 10446575 Ultra Low Ergo Binoc Head with 10448028 Eyepieces

The Leica 10446575 Ultra-Low Ergonomic Binocular Head is a premium observation head designed to maximize operator comfort while minimizing overall microscope height. This specialized head combines an ultra-low profile design with 10–50° continuously adjustable viewing angle, enabling operators to customize the microscope to their individual ergonomic requirements while maintaining a compact system footprint ideal for space-constrained work environments.

The adjustable viewing angle mechanism allows smooth, precise positioning anywhere within the 10–50° range, accommodating diverse working scenarios and operator preferences. Lower viewing angles (10–20°) are ideal for seated work with standard laboratory chairs, while higher angles (30–50°) support standing operation or use with elevated seating. The ability to fine-tune the viewing angle promotes a neutral head and neck position, reducing the musculoskeletal strain associated with prolonged microscope use.

The ultra-low profile design offers significant advantages in applications where workspace height is limited or where operators need to work with their hands close to the specimen. By minimizing the vertical distance between the objective and eyepieces, this head configuration provides excellent hand-eye coordination for manipulation tasks such as dissection, assembly, soldering, and precision positioning work. This design is particularly valuable in electronics assembly stations, quality control benches, and biological dissection laboratories where overhead clearance is limited or where operators perform hands-on manipulation while observing through the microscope.

The system includes two 10448028 adjustable 10× widefield eyepieces with screw-on mounting and individual diopter adjustment. These high-quality eyepieces provide comfortable viewing with excellent eye relief, and the diopter adjustment compensates for differences in individual eye focus, ensuring sharp images for all operators. The screw-on design ensures secure mounting and precise optical alignment.

This observation head is compatible with all Leica stereo microscope systems, including M-series, MZ-series, and other Leica platforms, making it a versatile upgrade for existing microscope configurations or an ideal component for new system builds requiring compact ergonomic design.

This unit is in excellent, as-new pre-owned condition, fully tested and ready for demanding professional applications.
