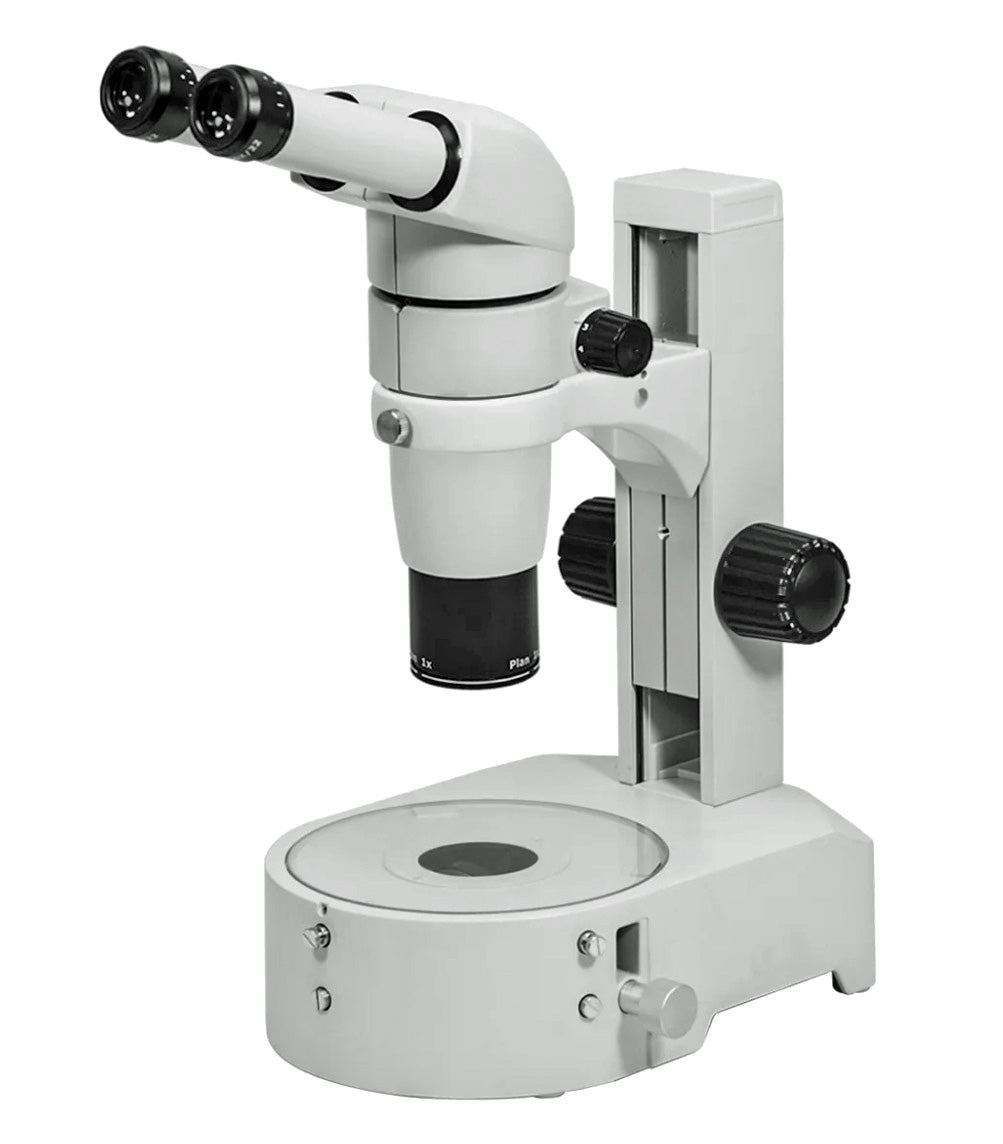

EcoView SZ90 Stereo Microscope 8x - 50x on Transmitted Light Halogen Mirror Base
SKU: SZ90-TL
2-Year Warranty
Full coverage
Expert Support
Technical help
EcoView SZ90 Stereo Microscope — 8x–50x | Transmitted Light Halogen Mirror Base
🔬 Infinity optical system with 8–50x zoom range
📐 1X Infinity Plan Achromatic Objective for sharp, flat-field imaging
👁️ 10X adjustable eyepiece with wide 4.4–27.5mm field of view
📏 78mm working distance — ideal for hands-on specimen manipulation

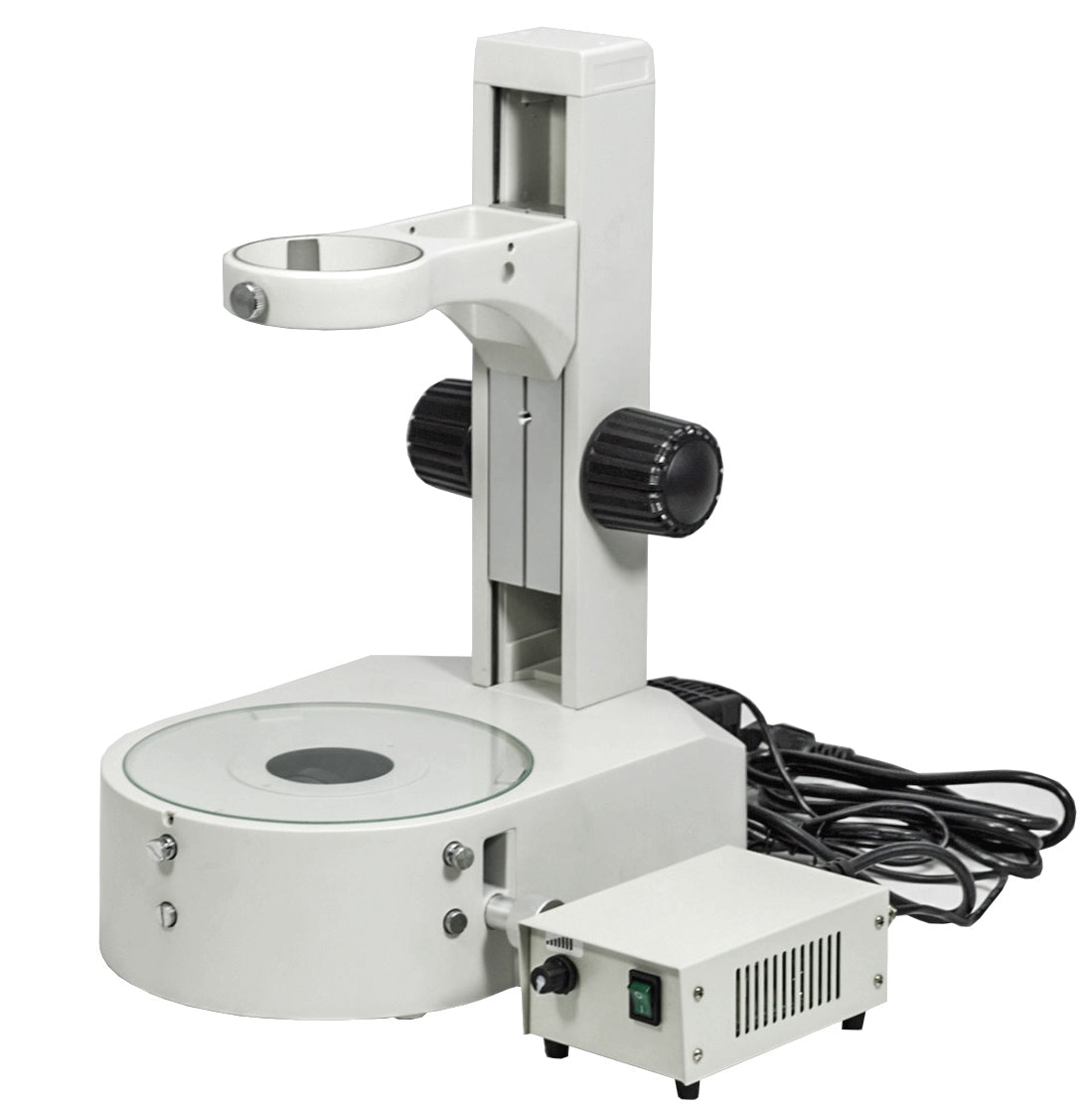

💡 Transmitted light halogen mirror base for versatile illumination
🔧 Product Description
The EcoView SZ90 is a high-performance stereo zoom microscope offering a smooth 8x–50x magnification range on an infinity optical system. Paired with a 1X Infinity Plan Achromatic Objective and 10X adjustable eyepieces, it delivers crisp, distortion-free images across a generous 27.5mm field of view at low magnification. The 78mm working distance provides ample clearance for dissection, assembly, and manipulation tasks. The transmitted light halogen mirror base adds flexible illumination options for transparent or semi-transparent specimens.
🔎 Typical Applications
- Biological dissection and specimen preparation
- Electronics inspection and PCB assembly
- Gemology and jewelry inspection
- Quality control in manufacturing
- Educational lab use
📊 Key Specifications
| Specification | Details |
|---|---|
| Optical System | Infinity |
| Magnification Range | 8x–50x |
| Standard Eyepiece | 10X Adjustable |
| Standard Objective | 1X Infinity Plan Achromatic |
| Field of View | Ø 4.4–27.5mm |
| Working Distance | 78mm |
| Illumination | Transmitted Light Halogen Mirror Base |
| SKU | SZ90-TL |
University purchase orders accepted. Contact us for institutional pricing.
