EcoView Surgical Microscope Floor Stand with Pneumatic Arm and 76mm Focus Rack
SKU: EV-FS1
Regular price
$2,250.00

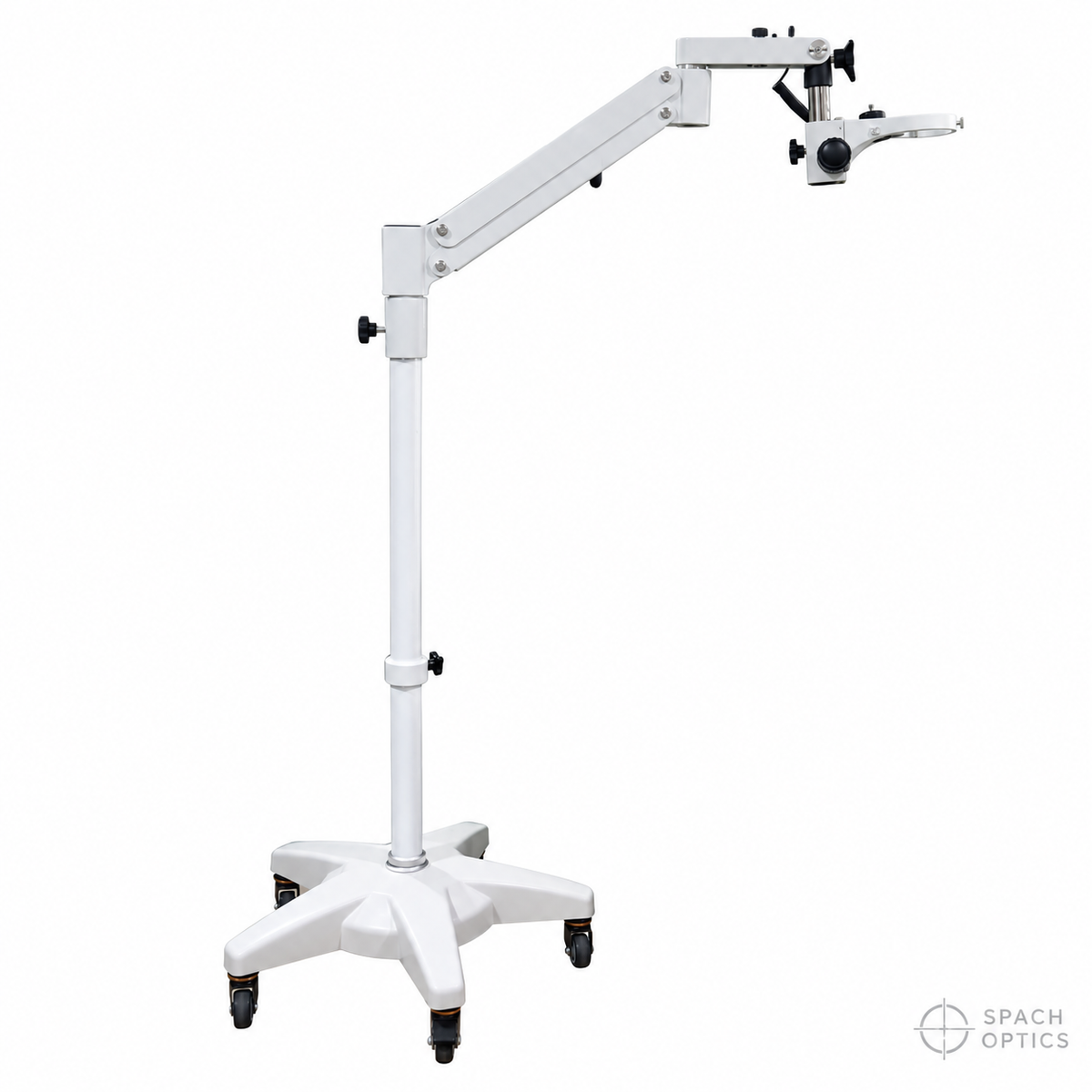

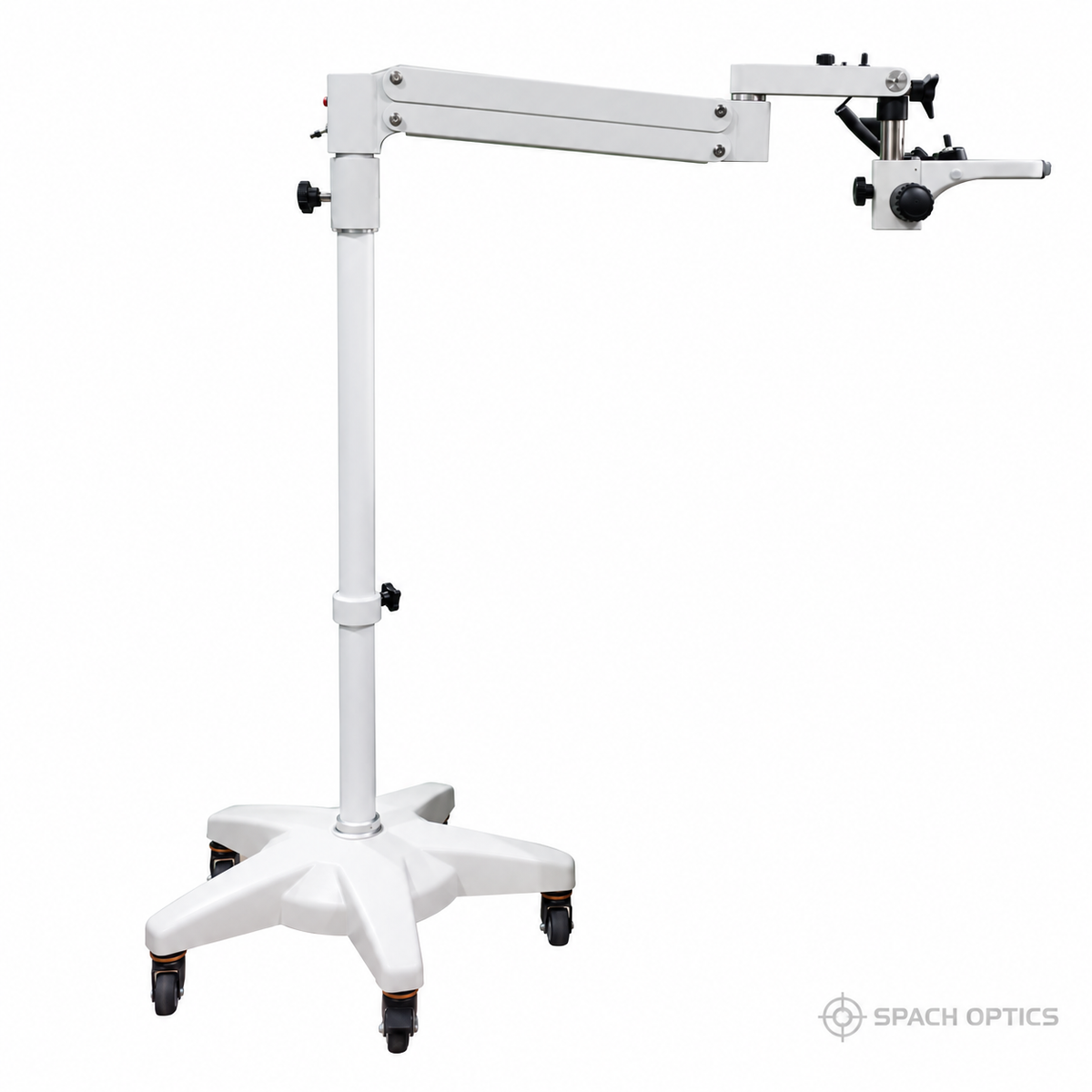

EcoView microscope floor stand with pneumatic arm, 76 mm scope holder, and tiltable arbor adapter.
KEY FEATURES
- Pneumatic arm with 450 mm horizontal arm length and 940 mm total arm length
- 76 mm scope holder with 50 mm focus distance
- Tiltable arbor adapter and safety protection screw against falling
- Oblique top illumination, DC 12 V, 2 A
Backed by Spach Optics Warranty
Secure Packaging & Reliable Delivery
People-Powered Support
Technical Specifications
| SKU | EV-FS1 |
| Arm type | Pneumatic |
| Scope holder diameter | 76 mm |
| Vertical post height | 810 mm |
| Vertical post diameter | 51.5 mm |
| Horizontal arm length | 450 mm |
| Total arm length | 940 mm |
| Base dimensions | ร73 ร 15 cm, as listed |
| Mounting-hole spacing | 27 ร 27 mm; M4 fastener |
| Focus distance | 50 mm |
| Arbor length | 195 mm |
| Arbor diameter | 32 mm |
| Arbor adapter type | Tiltable |
| Stand mount adapter diameter | 46 mm |
| Clamp opening | 0โ85 mm |
| Safety feature | Protection screw against falling |
| Top illumination | Oblique top light |
| Electrical input | DC 12 V, 2 A |
| Pneumatic arm reference | ST02072002 |
Microscope Compatibility
| 76 mm scope holder diameter; verify microscope mounting fit | |
| Stand mount adapter diameter | 46 mm |
| Mounting-hole spacing | 27 ร 27 mm; M4 fastener |
| Clamp opening | 0โ85 mm |
| Original listing references ST02072002 pneumatic arm |
Typical Applications
Floor-stand mounting and positioning of a surgical microscope with matching mounting dimensions
Microscope setups requiring a 76 mm scope holder and focus adjustment
