If you're shopping for a water immersion objective, there's one question that determines which half of the catalog you should be looking at, and it isn't magnification or price: will the objective touch the sample bath directly, or will it image through a coverslip?
Get this wrong and even a $10,000 objective will produce disappointing images. It's the question we get more than any other at Spach Optics, so here's the full answer.
Why water immersion at all?
A microscope objective's resolving power depends on its numerical aperture (NA), and NA is limited by the refractive index of whatever sits between the front lens and the specimen. Air has a refractive index of 1.0, capping dry objectives around NA 0.95 in practice. Water, at 1.33, raises that ceiling — water immersion objectives reach NA 1.1–1.27.
But resolution is only half the story. When you image into an aqueous specimen — living cells in media, a brain slice in a bath, tissue in buffer — a dry or oil objective suffers increasing spherical aberration with depth, because the light path crosses mismatched refractive indices. Images get soft and dim the deeper you focus. A water immersion objective matches the immersion medium to the specimen medium, so image quality holds up at depth. That's why water objectives dominate live-cell imaging, electrophysiology, and multiphoton work.
Within water immersion, though, there are two fundamentally different designs.
Dipping objectives: no coverslip, straight into the bath
A water dipping objective is designed to be lowered directly into the specimen bath — no coverslip anywhere in the light path. The front of the objective is usually a narrow, tapered tip (often ceramic or chemically inert material) built to enter a chamber without blocking your view of, or access to, the specimen.
Dipping objectives are the standard choice for:
- Electrophysiology and patch-clamp work — the long working distances (2–3.5mm is common) and steep tip angles leave room to bring micromanipulators and electrodes in at an angle while imaging
- Upright microscopes over open chambers — brain slices, whole-mount preparations, small organisms
- Intravital and multiphoton imaging — many dipping objectives are corrected into the near-infrared for two-photon excitation
From our inventory, three examples show the range: the Olympus LUMPLANFL N 60X Water Dipping Objective (NA 1.00, 2mm working distance — the workhorse for slice electrophysiology), the wide-field Olympus XLUMPLANFL N 20X Water Dipping Objective for surveying larger tissue regions before switching to high magnification, and the Nikon CFI Apo NIR 60X Water Dipping Objective — NA 1.00 with a generous 2.8mm working distance and NIR-optimized correction, built specifically for multiphoton imaging deep in live tissue.
One thing dipping objectives are not: usable through a coverslip. Put a #1.5 coverslip between a dipping objective and the specimen and you've introduced exactly the aberration the design assumes isn't there.
Coverslip-corrected water objectives: for imaging through glass
A coverslip-corrected water immersion objective expects a standard coverslip (usually 1.5, 0.17mm) between the front lens and the specimen, with water as the immersion medium on the objective side of the glass. The optical design corrects for the glass in the path.
These are the tool for:
- Inverted microscopes — cells growing in glass-bottom dishes, chambered coverglasses, or multiwell plates
- Confocal and super-resolution work on live cells — where oil's refractive index mismatch with aqueous media causes depth-dependent aberration, but the specimen still sits behind glass
- Long time-lapse imaging — water evaporates faster than oil, which is worth knowing, but water's index match to media wins for image quality deep into live specimens
Most high-NA coverslip-corrected water objectives carry a correction collar — a rotating ring that fine-tunes the optics for actual coverslip thickness (they vary more than you'd hope) and sometimes temperature. If your images look slightly soft with one of these objectives, the collar setting is the first thing to check, not the last.

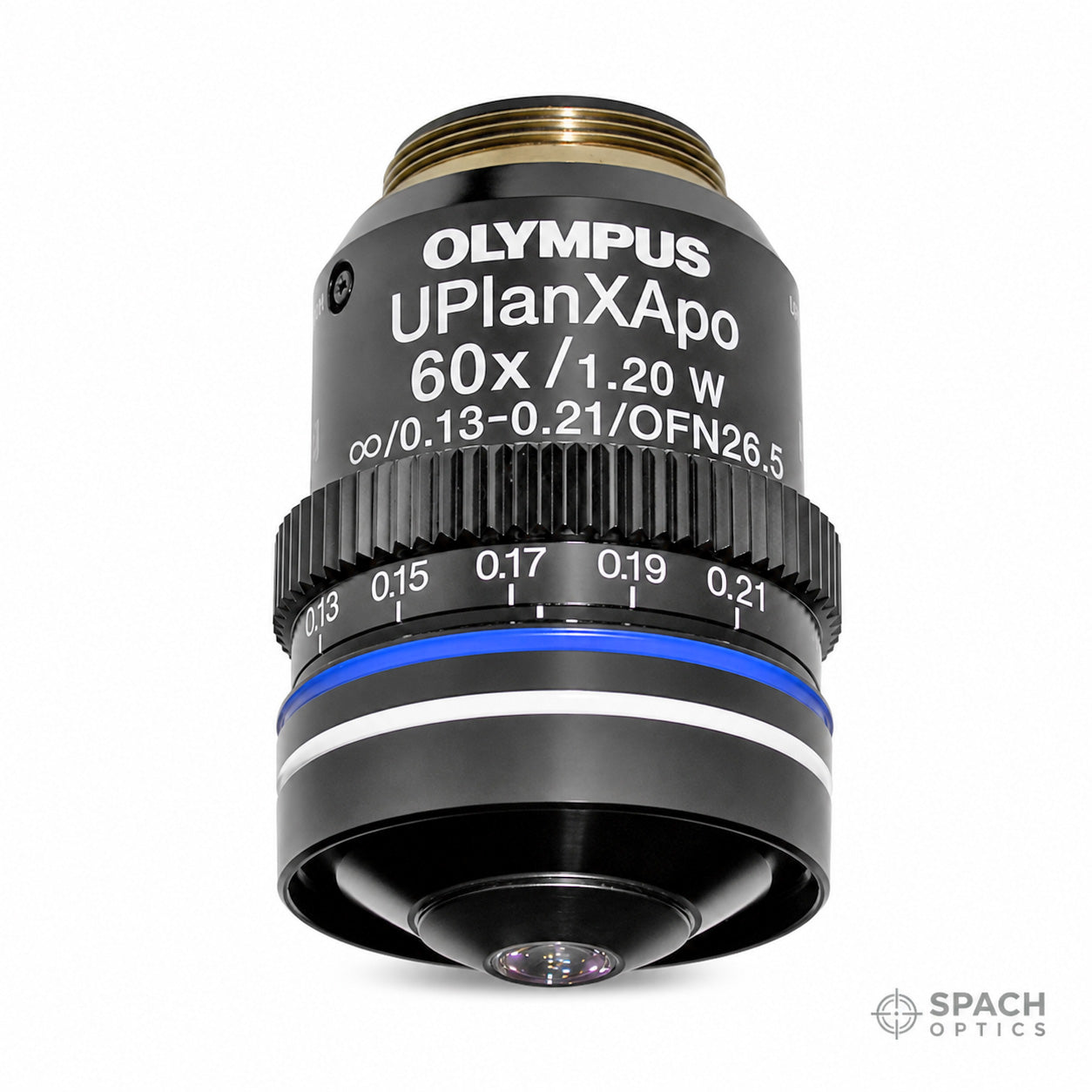

A flagship example from our inventory is the Olympus UPLANXAPO 60X Water Immersion Objective — an X Line super apochromat (NA 1.20) with a correction collar, combining top-tier chromatic correction, flatness, and NA in a single coverslip-corrected design for demanding confocal and live-cell work.
The decision in three questions
- Upright or inverted microscope? Inverted almost always means coverslip-corrected (your specimen is in a dish with a glass bottom). Upright over an open bath means dipping.
- Is there a coverslip in the light path? Any glass between lens and specimen → coverslip-corrected. Objective touches the liquid the specimen lives in → dipping.
- Do you need physical access to the specimen while imaging? Electrodes, injection needles, perfusion — that's dipping-objective territory; their geometry exists for exactly this.
If you answer these three, you've picked the right category. Within the category, then choose on magnification, NA, working distance, and spectral range like any other objective purchase.
Mistakes we see (so you don't repeat them)
- Buying a dipping objective for an inverted scope. It has no way to reach the specimen through the dish. This is the most common mis-purchase in this category.
- Ignoring the correction collar. A collar-equipped objective set for the wrong coverslip thickness can perform worse than a cheaper objective set correctly.
- Assuming all water objectives are NIR-capable. Multiphoton work needs objectives specified for IR transmission — many are, some aren't. Check the transmission spec at your excitation wavelength, or ask us.
- Using tap or buffer-contaminated water as immersion. Distilled water only on the lens side; dried buffer salts on a front element are a service visit waiting to happen.
