Olympus ULWDMIRPLAN 100x IR Objective
Olympus ULWDMIRPLAN 100x IR Objective

Olympus ULWD MS Plan 100x IR Objective

In stock

SKU: ULWDMIRPLAN100X

$2,995.00
$2,995.00 $8,995.00 save $6,000.00

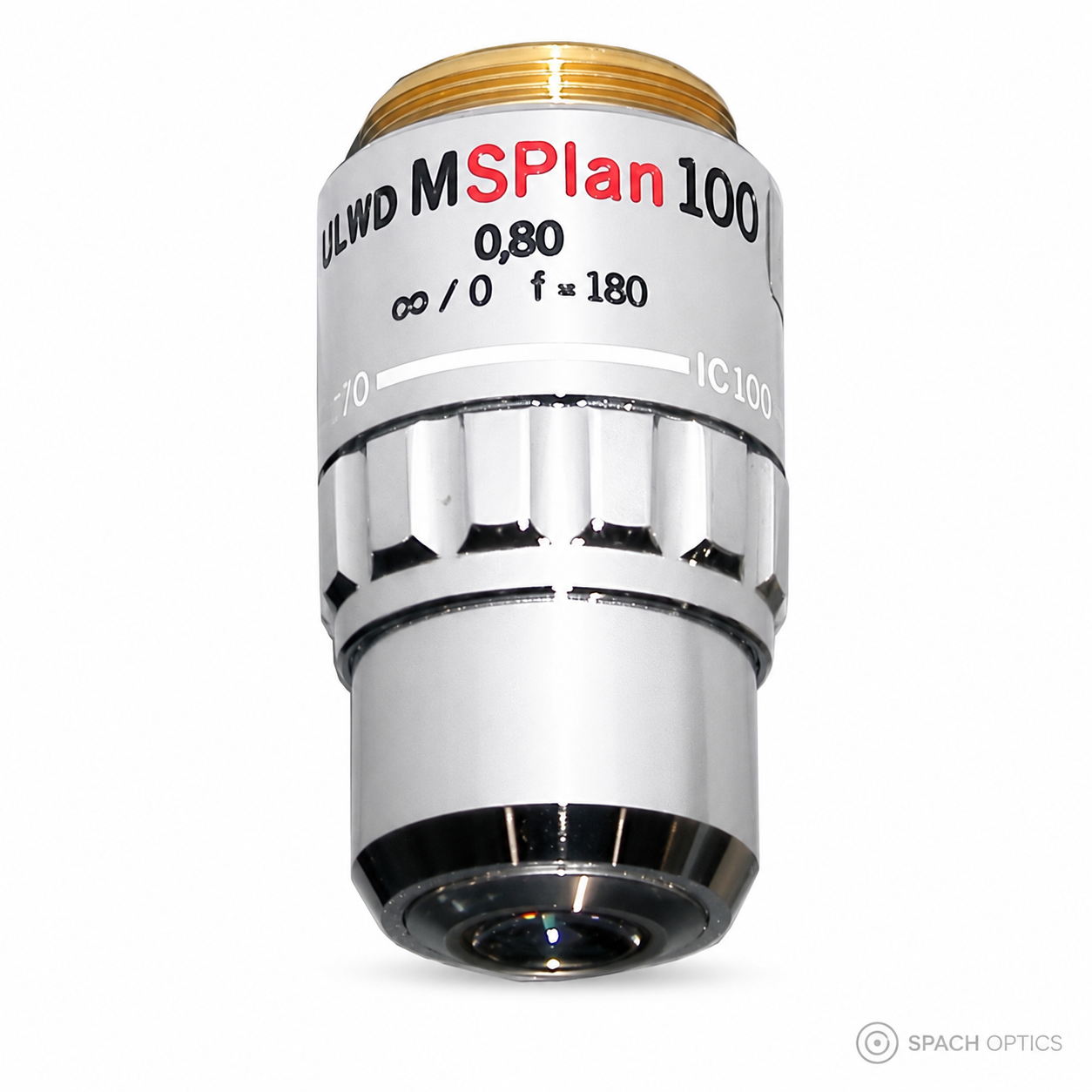

The Olympus ULWD MSPlan 100x IR/0.80 is a genuine OEM ultra long working distance infrared-corrected reflected light objective for Olympus BH2, BX, and MX series microscopes, delivering 3.2mm of working distance at 100x magnification with IR optimization — purpose-built for near-infrared laser processing, femtosecond laser applications, and coaxial visible imaging on tall or packaged specimens.

KEY FEATURES

  • 100x / 0.80 NA ultra long working distance — 3.2mm WD provides clearance for tall specimens, packages, and laser processing setups
  • Infrared (IR) corrected — optimized for near-infrared wavelengths including femtosecond and YAG laser applications
  • Infinity corrected — compatible with Olympus infinity-corrected reflected light optical systems
  • RMS thread mount — fits Olympus BH2, BX, and MX series reflected light microscope nosepieces
  • Excellent condition, flawless optics — inspected and verified, part no. 1-LM595i
  • University purchase orders accepted
Request a Quote
Backed by Spach Optics Warranty

Secure Packaging & Reliable Delivery

People-Powered Support

Product Overview

The Olympus ULWD MSPlan 100x IR is a highly specialized ultra long working distance reflected light objective designed for near-infrared laser processing and imaging applications on Olympus BH2, BX, and MX series industrial microscopes. The IR correction optimizes the objective’s optical performance across near-infrared wavelengths — making it ideal for use with femtosecond lasers, Nd:YAG lasers, and other NIR laser sources used in laser micromachining, ablation, and materials processing. At 3.2mm working distance and 0.80 NA, this objective provides the clearance needed to accommodate laser processing setups, beam delivery optics, and tall or packaged specimens while maintaining high resolving power. The flat field correction and coaxial imaging capability allow visible light monitoring of the laser processing area in real time, enabling precise targeting and process control. The infinity-corrected design integrates with Olympus BH2, BX, and MX series reflected light stands and vertical illuminators. Supplied as a genuine Olympus OEM objective (part no. 1-LM595i) in excellent condition with flawless optics.

Technical Specifications

Manufacturer Olympus
Model ULWD MSPlan 100x IR
Part Number 1-LM595i
Magnification 100x
Numerical Aperture 0.80
Working Distance 3.2 mm (Ultra Long)
Spectral Optimization Infrared (IR) / Near-Infrared (NIR)
Optical Design MSPlan (Reflected Light, No Coverslip)
Correction Infinity Corrected
Thread Mount RMS
Compatible Systems Olympus BH2, BX, and MX Series Reflected Light Microscopes
Country of Origin Japan
Condition Excellent / Flawless Optics

Microscope Compatibility

Typical Applications

Near-infrared femtosecond and Nd:YAG laser micromachining and ablation with coaxial visible imaging
Laser processing of semiconductor wafers, thin films, and precision materials at 100x
NIR laser beam focusing and targeting on tall or packaged specimens requiring extended working distance
Coaxial visible light monitoring of laser processing areas in real time
Replacement or upgrade of 100x ULWD IR objectives on Olympus BH2, BX, and MX series systems
