Nikon S Fluor 4X Microscope Objective
SKU: MRF00041
2-Year Warranty
Full coverage
Expert Support
Technical help

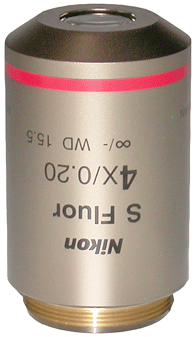

Nikon CFI Super Fluor 4X Microscope Objective
🔬 High-performance fluorite objective for Nikon CFI60 infinity-corrected microscopes
🎯 4X magnification with 0.20 numerical aperture for wide-field imaging
🌈 Superior fluorite optics deliver enhanced chromatic correction for fluorescence applications
📏 Generous 15.5mm working distance ideal for thick specimens and manipulation
🔧 M25 thread compatible with all Nikon infinity-corrected microscope systems
✨ Excellent condition with flawless optics
🔧 Product Description
The Nikon CFI Super Fluor 4X is a premium low-magnification objective engineered with advanced fluorite optical elements to deliver superior chromatic correction and high transmission across a broad wavelength range. As part of Nikon's renowned CFI60 infinity optical system, this objective provides exceptional image quality for both brightfield and fluorescence microscopy applications. The fluorite glass elements significantly reduce chromatic aberration compared to standard achromat objectives, ensuring accurate color reproduction and improved contrast—particularly valuable in multi-channel fluorescence imaging and live cell observation. With a generous 15.5mm working distance, the Super Fluor 4X provides ample clearance for thick specimens, culture vessels, and micromanipulation tasks, making it ideal for screening applications, tissue section overview, and initial specimen survey before switching to higher magnifications. The wide field of view at 4X magnification enables efficient navigation and contextual imaging, while the high-quality fluorite optics ensure that image quality is never compromised. This objective is in excellent condition with flawless optics, offering professional-grade performance for laboratories using Nikon Eclipse, Ti, and Ni series microscopes.
🔎 Typical Applications
- Wide-field fluorescence microscopy and multi-channel imaging
- Live cell imaging and tissue culture observation
- Histopathology specimen screening and overview imaging
- Whole-slide scanning and digital pathology
- Micromanipulation and microinjection procedures
- Thick specimen imaging including organoids and tissue sections
- Brightfield and phase contrast microscopy
- Educational and clinical laboratory microscopy
📊 Key Specifications
| Specification | Details |
| Model | Nikon CFI Super Fluor 4X |
| Magnification | 4X |
| Numerical Aperture (NA) | 0.20 |
| Optical Design | Fluorite (Semi-Apochromat), Infinity-Corrected (CFI60) |
| Immersion Type | Dry (air) |
| Working Distance | 15.5mm |
| Thread Type | M25 (25mm metric thread) |
| Compatibility | All Nikon CFI60 infinity-corrected microscopes (Eclipse, Ti, Ni series) |
| Optical Correction | Fluorite (enhanced chromatic correction) |
| Recommended Applications | Fluorescence, brightfield, phase contrast, wide-field imaging |
| Condition | Excellent, flawless optics |
University purchase orders are welcome and accepted. Please contact us for institutional pricing and procurement assistance.
